Product Summary

The LAN91C111-NU is the 10/100 Non-PCI Ethernet single chip designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications. For this third generation of products, flexibility and integration dominate the design requirements. The LAN91C111 is a mixed signal Analog/Digital device that implements the MAC and PHY portion of the CSMA/CD protocol at 10 and 100 Mbps. The design of LAN91C111-NU will also minimize data throughput constraints utilizing a 32-bit, 16-bit or 8-bit bus Host interface in embedded applications.

Parametrics

LAN91C111-NU absolute maximum ratings: (1)Operating Temperature Range: 0℃ to +85℃; (2)Storage Temperature Range: -55 to + 150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: VCC + 0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum VCC: +5V.

Features

LAN91C111-NU features: (1)Single Chip Ethernet Controller; (2)Dual Speed - 10/100 Mbps; (3)Fully Supports Full Duplex Switched Ethernet; (4)Supports Burst Data Transfer; (5)8 Kbytes Internal Memory for Receive and Transmit FIFO Buffers; (6)Enhanced Power Management Features; (7)Optional Configuration via Serial EEPROM Interface; (8)Supports 8, 16 and 32 Bit CPU Accesses; (9)Internal 32 Bit Wide Data Path (Into Packet Buffer Memory); (10)Early TX, Early RX Functions; (11)Built-in Transparent Arbitration for Slave Sequential; (12)Access Architecture; (13)Flat MMU Architecture with Symmetric Transmit and Receive Structures and Queues; (14)3.3V Operation with 5V Tolerant IO Buffers (See Pin List Description for Additional Details); (15)Single 25 MHz Reference Clock for Both PHY and; (16)MAC; (17)External 25Mhz-output pin for an external PHY; (18)supporting PHYs physical media.

Diagrams

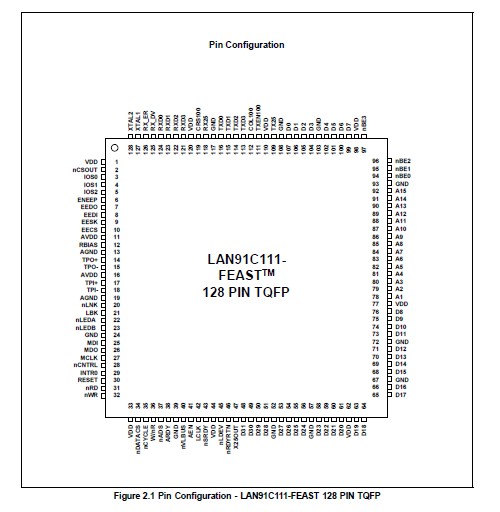

LAN91C111-NU pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

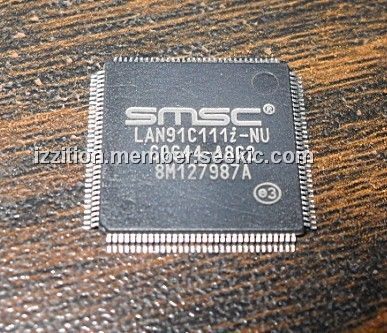

LAN91C111-NU
LAN91C111-NU

SMSC

Ethernet ICs Ethernet IC MAC PHY

Data Sheet

0-1: $13.56
1-25: $12.64
25-100: $12.14
100-250: $11.74
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LAN9115
LAN9115

Other


Data Sheet

Negotiable
LAN9115-MD
LAN9115-MD

SMSC

Ethernet ICs Efficient Sngl Chip 10/100 Ethrnt

Data Sheet

Negotiable
LAN9115-MT
LAN9115-MT

SMSC

Ethernet ICs Ethernet IC 16bit Superior Perf

Data Sheet

0-1: $6.90
1-25: $4.92
25-100: $4.46
100-250: $4.29
LAN9116
LAN9116

Other


Data Sheet

Negotiable
LAN9116-MD
LAN9116-MD

SMSC

Ethernet ICs Efficient Sngl Chip 10/100 Ethrnt

Data Sheet

Negotiable
LAN9116-MT
LAN9116-MT

SMSC

Ethernet ICs Ethernet IC 32bit Superior Perf

Data Sheet

0-450: $5.74
450-900: $5.56
