Product Summary

Available either in through-hole or surface-mount packages, the BTA12-600B triac is suitable for general purpose AC switching. It can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers.

Parametrics

Absolute maximum ratings: (1)IT(RMS), RMS on-state current (full sine wave): 12 A at D2PAK/TO-220AB, Tc = 105℃; 12A at TO-220AB Ins. Tc = 90℃; (2)ITSM, Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃): 120 A at F = 50 Hz, t = 20 ms; 126A at F = 60 Hz, t = 16.7 ms ; (3)I2t, I2t Value for fusing: 78 A2s at tp = 10 ms; (4)dI/dt, Critical rate of rise of on-state current, IG = 2 x IGT , tr ≤ 100 ns: 50 A/μs at F = 120 Hz, Tj = 125℃ ; (5)VDSM/VRSM, Non repetitive surge peak off-state voltage: VDRM/VRRM+ 100 V at tp = 10 ms, Tj = 25℃; (6)IGM, Peak gate current: 4 A at tp = 20 μs Tj = 125℃; (7)PG(AV), Average gate power dissipation: 1 W at Tj = 125℃; (8)Tstg, Storage junction temperature range: - 40 to + 150℃; (9)Tj, Operating junction temperature range: - 40 to + 125℃.

Features

Main features: (1)IT(RMS): 12 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT (Q1): 5 to 50 mA.

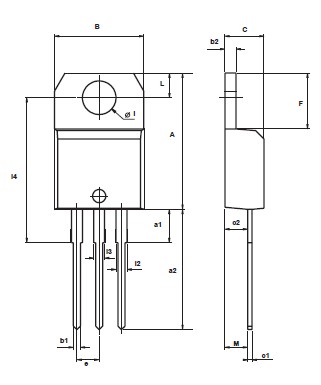

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTA12-600B
BTA12-600B

Other


Data Sheet

Negotiable
BTA12-600BRG
BTA12-600BRG

STMicroelectronics

Triacs 12 Amp 600 Volt

Data Sheet

0-1: $0.49
1-10: $0.47
10-100: $0.43
100-250: $0.42
BTA12-600BWRG
BTA12-600BWRG

STMicroelectronics

Triacs 12 Amp 600 Volt

Data Sheet

0-1: $0.76
1-10: $0.72
10-100: $0.67
100-250: $0.59
BTA12-600BW3G
BTA12-600BW3G

ON Semiconductor

Triacs 12A 50mA 600V IGT 3 QUAD INTERNL ISLTD

Data Sheet

0-1: $0.70
1-25: $0.69
25-100: $0.54
100-250: $0.49
BTA12-600BW
BTA12-600BW


TRIAC 600V 12A TO-220AB

Data Sheet

Negotiable
