Product Summary

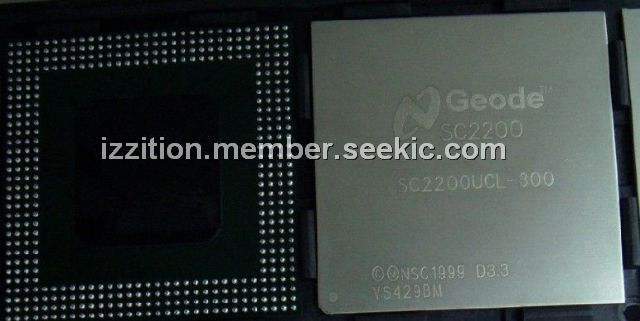

The Geode SC2200UCL-300 Thin Client On a Chip device is a member of the National Semiconductor IA (Information Appliance) On a Chip family of fully integrated x86 system chips.These features, combined with the device small form factor and low power consumption, make SC2200UCL-300 ideal as the core for a thin client application.

Parametrics

SC2200UCL-300 absolute maximum ratings: (1)TCASE Operating case temperature: -45 to 110℃; (2)TSTORAGE Storage temperature: -45 to 125℃; (3)VMAX Voltage on 5V tolerant balls: -0.5 to 6.0 V; Others: -0.5 to 3.6 V; (4)IIK Input clamp current: -0.5 to 10 mA; (5)IOK Output clamp current: 25 mA.

Features

SC2200UCL-300 features: (1)32-Bit x86 processor, up to 300 MHz, with MMX instruction set support; (2)Memory controller with 64-bit SDRAM interface; (3)2D graphics accelerator; (4)CRT controller with hardware video accelerator; (5)CCIR-656 video input port with direct video for full screen display; (6)PC/AT functionality; (7)PCI bus controller; (8)IDE interface, two channels; (9)USB, three ports, OHCI (OpenHost Controller Interface)version 1.0 compliant; (10)Audio, AC97/AMC97 version 2.0 compliant; (11)Virtual System ArchitectureR (VSA.) technology support; (12)Power management, ACPI (Advanced Configuration Power Interface) version 1.0 compliant.

Diagrams

SC2200UCL-300 Block Diagram
