Product Summary

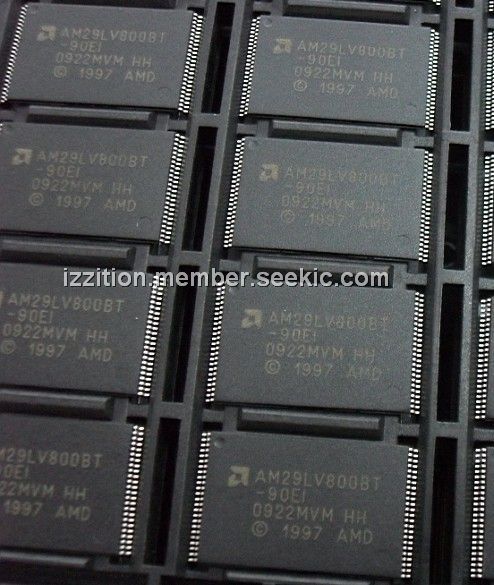

The AM29LV800BT-90EI is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The AM29LV800BT-90EI is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800BT-90EI is also available in Known Good Die (KGD) form. This AM29LV800BT-90EI requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the AM29LV800BT-90EI.

Parametrics

AM29LV800BT-90EI absolute maximum ratings: (1)Max access time, ns (tACC): 90; (2)Max CE# access time, ns (tCE): 90; (3)Max OE# access time, ns (tOE): 35; (4)Storage Temperature Plastic Packages: –65℃ to +150℃; (5)Ambient Temperature with Power Applied: –65℃ to +125℃; (6)Voltage with Respect to Ground: VCC–0.5V to +4.0V.

Features

AM29LV800BT-90EI features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Top or bottom boot block configurations available; (8)Embedded Algorithms; (9)Minimum 1 million write cycle guarantee per sector; (10)20-year data retention at 125℃.

Diagrams

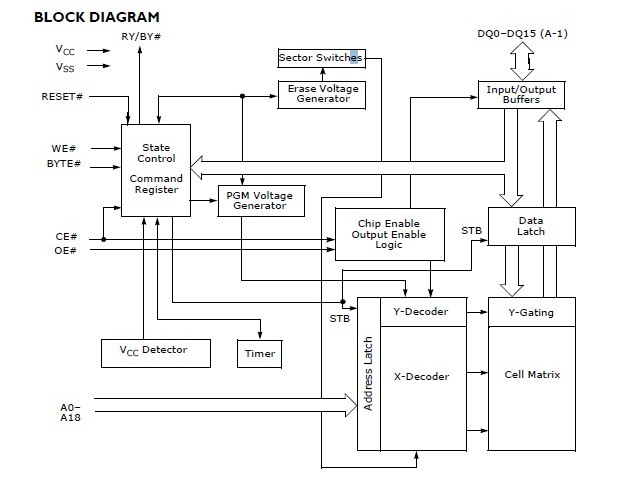

AM29LV800BT-90EI BLOCK DIAGRAM
