Product Summary

The SAK-C164CI-8E25M DB derivatives of the Infineon C166 Family of full featured single-chip CMOS microcontrollers are especially suited for cost sensitive applications. The SAK-C164CI-8E25M DB combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAK-C164CI-8E25M DB also provide clock generation via PLL and various on-chip memory modules such as program ROM or OTP, internal RAM, and extension RAM.

Parametrics

SAK-C164CI-8E25M DB absolute maximum ratings: (1)Storage temperature, Tst: -65 to 150℃; (2)Junction temperature, TJ: -40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5V; (4)Voltage on any pin with respect to ground (VSS), VIN: -0.5 to VDD+0.5V; (5)Input current on any pin during overload condition: -10 to 10mA; (6)Power dissipation, PDISS: 1.5W.

Features

SAK-C164CI-8E25M DB features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)16-Priority-Level Interrupt System with 32 Sources, Sample-Rate down to 40 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (4)Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input; (5)On-Chip Memory Modules; (6)On-Chip Peripheral Modules; (7)Idle, Sleep, and Power Down Modes with Flexible Power Management; (8)Programmable Watchdog Timer and Oscillator Watchdog.

Diagrams

SAK-C164CI-8E25M DB Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

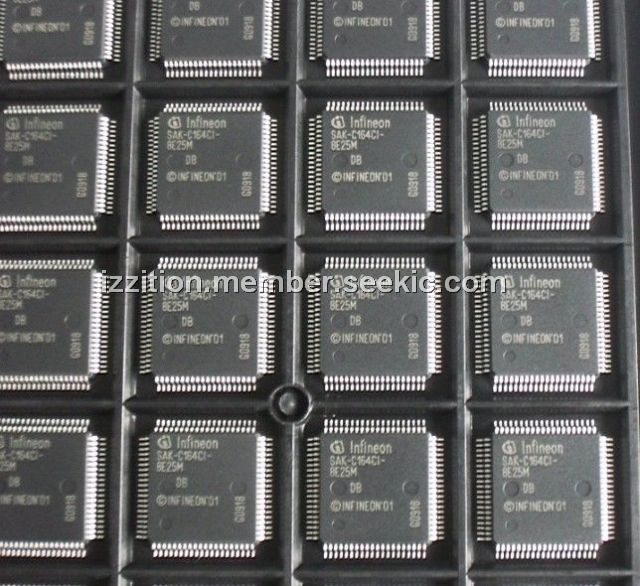

SAK-C164CI-8E25M DB
SAK-C164CI-8E25M DB

Infineon Technologies

16-bit Microcontrollers (MCU) 16-Bit Sngl-Chip 5V 25MHz OTP

Data Sheet

Negotiable
