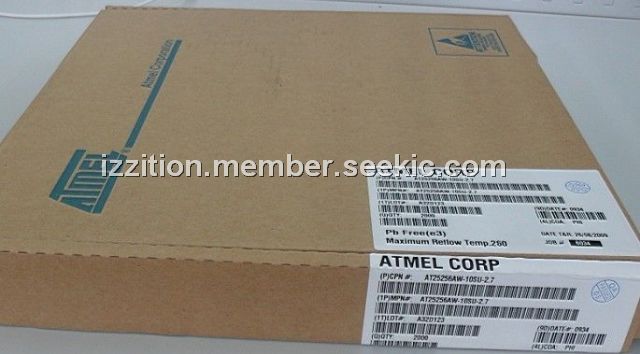

AT25256AW-10SU-2.7

electrically-erasable programmable read only memory (EEPROM), 256KBIT, 20MHZ, 8SOIC, 1.0V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.55~1.58 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.55~1.58

PartNumber:: AT25256AW-10SU-2.7

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-28

From Other Seller

Part Number:AT25256AW-10SU-2.7
US $1.55 - 1.58
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

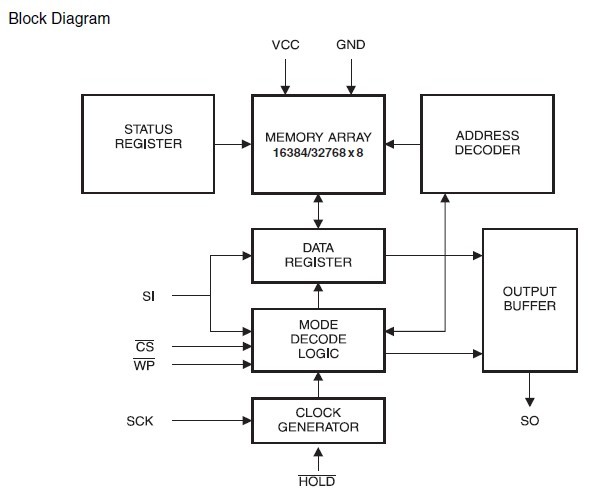

The AT25256AW-10SU-2.7 provides 131,072/262,144 bits of serial electrically-erasable programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8 bits each. The AT25256AW-10SU-2.7 is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25256AW-10SU-2.7 is available in space saving 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-ball dBGA2 and 8-lead SAP packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Parametrics

AT25256AW-10SU-2.7 absolute maximum ratings: (1)Operating Temperature: 55℃ to +125℃; (2)Storage Temperature: 65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: 1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0mA.

Features

AT25256AW-10SU-2.7 features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1); (3)Data Sheet Describes Mode 0 Operation; (4)Low-voltage and Standard-voltage Operation; (5)20 MHz Clock Rate (5V); (6)64-byte Page Mode and Byte Write Operation; (7)Block Write Protection; (8)Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection; (9)Self-timed Write Cycle (5 ms Max); (10)High-reliability; (11)Lead-free/Halogen-free; (12)Available in Automotive; (13)Die Sales: Wafer Form, Waffle Pack, and Bumped Die.
