RTL8019AS-LF

Full-Duplex Ethernet Controller, 100-pin PQFP, three level power down mode, highly integrated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.12~3.18 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.12~3.18

PartNumber:: RTL8019AS-LF

Brand:: Realtek Semiconductor - Realtek | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-28

From Other Seller

Part Number:RTL8019AS-LF
US $3.12 - 3.18
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RTL8019AS-LF is a highly integrated Ethernet Controller which offers a simple solution to implement a Plug and Play NE2000 compatible adapter with full-duplex and power down features. With the three level power down control features, the RTL8019AS-LF is made to be an ideal choice of the network device for a GREEN PC system. The RTL8019AS-LF supports 16k, 32k & 64k byte BROM and fiash memory interface. It also offers the page mode function which can support up to 4M-byte BROM within only 16k-byte system memory space.

Parametrics

RTL8019AS-LF absolute maximum ratings: (1)Operating Temperature:0℃ to 70℃; (2)Storage Temperature:-65℃ to 140℃; (3)All Outputs and Supply Voltages, with respect to Ground:-0.5V to 7V.

Features

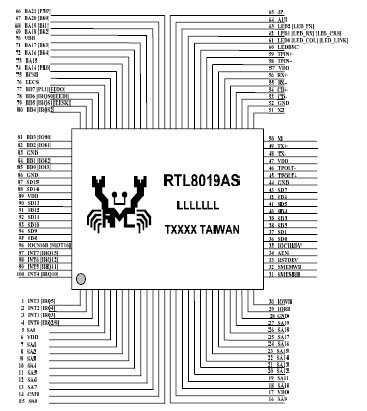

RTL8019AS-LF features: (1)100-pin PQFP ; (2)RTL8019 software compatible ; (3)Supports PnP auto detect mode; (4)Compliant to Ethernet II and IEEE802.3 10Base5, 10Base2, 10BaseT ; (5)Software compatible with NE2000 on both 8 and 16-bit slots ; (6)Supports both jumper and jumperless modes ; (7)Supports Microsoft’s Plug and Play configuration for jumperless mode ; (8)Supports Full-Duplex Ethernet function to double channel bandwidth ; (9)Built-in data prefetch function to improve performance ; (10)Supports UTP, AUI & BNC auto-detect; (11)Supports auto polarity correction for 10BaseT ; (12)Support 8 IRQ lines ; (13)Supports 16 I/O base address options and extra I/O address fully decode mode; (14)Supports 16K, 32K, 64K and 16K-page mode access to BROM (up to 256 pages with 16K bytes/page) ; (15)Supports BROM disable command to release memory after remote boot ; (16)Supports flash memory read/write; (17)16k byte SRAM built in; (18)Use 9346 (64*16-bit EEPROM) to store resource configurations and ID parameters ; (19)Capable of programming blank 9346 on board for manufacturing convenience ; (20)Support 4 diagnostic LED pins with programmable outputs.
