Product Summary
The XCS05-3VQG100C is a 0.5V field programmable gate array. The XCS05-3VQG100C is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gate. The requirements of the XCS05-3VQG100C include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices. The XCS05-3VQG100C is the result of more than 14 years of FPGA design experience and feedback from thousands of customers.
Parametrics
XCS05-3VQG100C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0 V; (2)VIN Input voltage relative to GND: –0.5 to VCC +0.5 V; (3)VTS Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)TSTG Storage temperature: –65 to +150 ℃; (5)TJ Junction temperature Plastic packages: +125 ℃.
Features
XCS05-3VQG100C features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCOREand LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

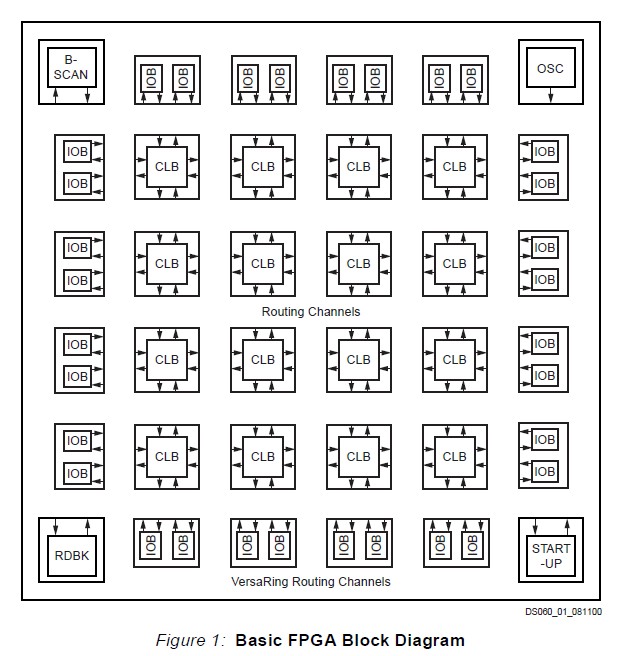

Diagrams
 |
 XCS05 and XCS05XL |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
XCS05-3PC84C |
|
IC FPGA 5V C-TEMP 84-PLCC |
Data Sheet |
Negotiable |
|
||||||
 |
XCS05-3VQ100C |
|
IC FPGA 5V C-TEMP 100-VQFP |
Data Sheet |
|
|
||||||
|
XCS05-3VQ100I |
|
IC FPGA 5V I-TEMP 100-VQFP |
Data Sheet |
Negotiable |
|
||||||
|
XCS05-4PC84C |
|
IC FPGA 5V C-TEMP 84-PLCC |
Data Sheet |
Negotiable |
|
||||||
|
XCS05-4VQ100C |
|
IC FPGA 5V C-TEMP 100-VQFP |
Data Sheet |
Negotiable |
|
||||||
