Product Summary

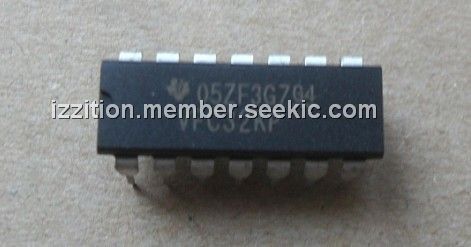

The VFC32KP is a voltage-to-frequency converter. It provides an output frequency accurately proportional to its input voltage. The device can also be configured as a frequency-to-voltage converter. The application of the VFC32KP includes integrating a/d converter; Serial frequency output; Isolated data transmission; fm analog signal mod/demod; Motor speed control; Tachometer. The VFC32KP is available in 14-pin plastic DIP, SO-14 surface-mount, and metal TO-100 packages.
Parametrics
VFC32KP absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Output Sink Current (FOUT): 50mA; (3)Output Current (VOUT): +20mA; (4)Input Voltage, –Input: ±Supply; (5)Input Voltage, +Input: ±Supply; (6)Comparator Input: ±Supply; (7)Storage Temperature Range: –25℃ to +85℃.
Features
VFC32KP features: (1)operation up to 500kHz; (2)excellent linearity: ±0.01% max at 10kHz FS; ±0.05% max at 100kHz FS; (3)V/F or F/V conversion; (4)monotonic; (5)voltage or current input.

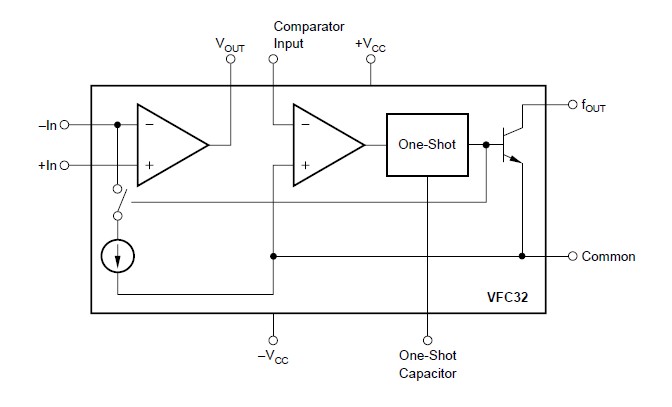

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VFC32KP |
Texas Instruments |
Voltage to Frequency & Frequency to Voltage VOLTAGE-TO-FREQUENCY CONVERTER |
Data Sheet |
|
|
||||||||||||
|
VFC32KPG4 |
Texas Instruments |
Voltage to Frequency & Frequency to Voltage VOLTAGE-TO-FREQUENCY CONVERTER |
Data Sheet |
|
|
||||||||||||
