Product Summary

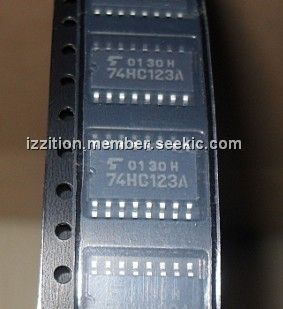

The TC74HC123AF is a high speed CMOS monostable multivibrator fabricated with silicon gate C2MOS technology. The TC74HC123AF achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. There are two trigger inputs, A input (negative edge), and B input (positive edge). These inputs are valid for a slow rise/fall time signal (tr = tf = 1 s) as they are schmitt trigger inputs. The TC74HC123AF may also be triggered by using CLR input (positive edge).

Parametrics

TC74HC123AF absolute maximum ratings: (1)Supply voltage range:-0.5 to 7V; (2)DC input voltage:-0.5 to VCC + 0.5V; (3)DC output voltage:-0.5 to VCC + 0.5V; (4)Input diode current:±20mA; (5)Output diode current:±20mA; (6)DC output current:±25mA; (7)DC VCC/ground current:±50mA; (8)Power dissipation:180mW; (9)Storage temperature:-65℃ to 150℃.

Features

TC74HC123AF features: (1)High speed: tpd = 25 ns (typ.) at VCC = 5 V; (2)Low power dissipation: Standby state: ICC = 4 μA (max) at Ta = 25℃, Active state: ICC = 700 μA (max) at Ta = 25℃; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Output drive capability: 10 LSTTL loads; (5)Symmetrical output impedance: |IOH| = IOL = 4 mA (min); (6)Balanced propagation delays: tpLH ≈tpHL; (7)Wide operating voltage range: VCC (opr) = 2 to 6 V; (8)Pin and function compatible with 74LS123.

Diagrams

TC74HC123AF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TC74HC123AFN (ELF,M
TC74HC123AFN (ELF,M

Toshiba

Monostable Multivibrator Dual Retrig VCC 2.0V Mono Multivibrator

Data Sheet

0-1900: $0.17
1900-2000: $0.14
2000-5000: $0.14
5000-10000: $0.13
TC74HC123AFN(ELP,NEW)
TC74HC123AFN(ELP,NEW)


IC MULTIVIBRATOR DL/MONO 16-SOL

Data Sheet

Negotiable
