Product Summary
The UCB1400BE is a stereo audio codec equipped with touch screen and power management interfaces. The UCB1400BE integrates an AC’97 Rev. 2.1 interface for communication to an AC link host controller such as the Intel Xscale. processor. The stereo audio codec inputs connect directly to a microphone or line level sources such as a CD player.
Parametrics
UCB1400BE Absolute maximum ratings: (1)VDD Supply voltage: -0.5 V to 4 V; (2)Tstg Storage temperature: -65℃ to +125℃; (3)Tamb Operating ambient temperature: -40℃ to +85℃; (4)Ves Electrostatic handling voltage Equivalent to discharging a 100 pF capacitor via 1.5 kW series resistor: -1500 V to +1500 V.
Features
UCB1400BE features: (1)48-pin LQFP surface mount package and low external component count for minimal PCB space requirement; (2)Integrated AC’97 Rev. 2.1 interface; (3)20-bit stereo audio codec supporting programmable sample rates, and input/output gain control; (4)4-wire resistive touch screen interface circuit supporting position, pressure and plate resistance measurements; (5)Ten general purpose input/output pins; (6)3.3 V supply voltage and built-in power saving modes for portable and battery powered applications.

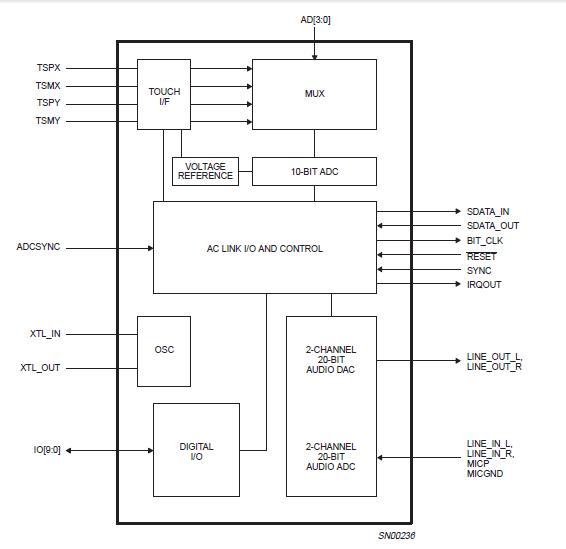

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UCB1400BE,128 |
NXP Semiconductors |
Audio CODECs AUDIO CODEC WITH TOUCHSCREEN |
Data Sheet |
Negotiable |
|
||||||
|
UCB1400BE,151 |
NXP Semiconductors |
Audio CODECs AUDIO CODEC |
Data Sheet |
Negotiable |
|
||||||
|
UCB1400BE-S |
NXP Semiconductors |
Audio CODECs AUDIO CODEC NO NEW DESIGNS |
Data Sheet |
Negotiable |
|
||||||
|
UCB1400BEFE |
|
IC AUDIO CODEC W/TCH SCRN 48LQFP |
Data Sheet |
Negotiable |
|
||||||
|
UCB1400BEVM |
|
IC AUDIO CODEC W/TCH SCRN 48LQFP |
Data Sheet |
Negotiable |
|
||||||
 |
UCB1400BEFA |
ST-Ericsson Inc |
IC AUDIO CODEC '97 20BIT 48LQFP |
Data Sheet |
|
|
||||||
