TEA1062A/C4/M1,112

TEA1062A/C4/M1,112, Low voltage transmission circuit, DIP, 12V, 140mA, 666mW, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.43 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5000 :	0.43 / Piece
6000 ~ 20000 :	0.33 / Piece
25000 ~ 50000 :	0.30 / Piece

PartNumber:: TEA1062A/C4/M1,112

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. sales's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-24

From Other Seller

Part Number:TEA1062A/C4/M1,112
US $0.30 - 0.43
Quantity:

piece

Product Summary

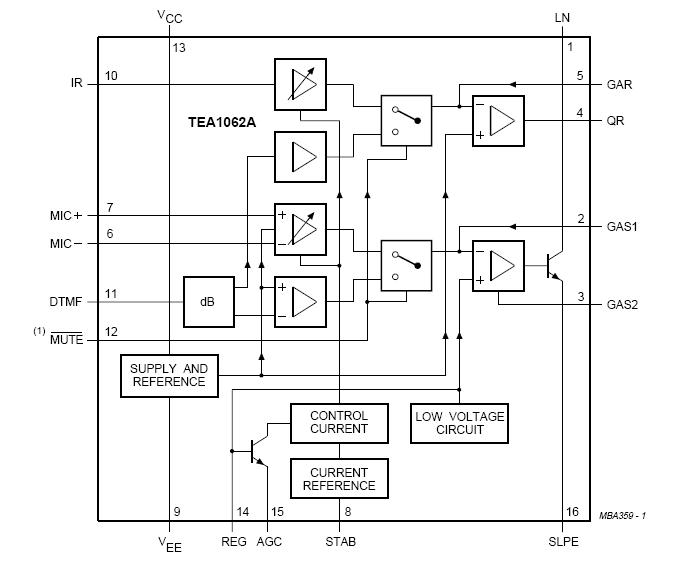

The TEA1062A/C4/M1,112 is a Low voltage transmission circuit with dialler interface. It performs all speech and line interface functions required in fully electronic telephone sets. The TEA1062A/C4/M1,112 performs electronic switching between dialling and speech. The TEA1062A/C4/M1,112 operates at line voltage down to 1.6 V DC (with reduced performance) to facilitate the use of more telephone sets connected in parallel.

Parametrics

TEA1062A/C4/M1,112 absolute maximum ratings: (1)VLN positive continuous line voltage: 12V; (2)VLN(R) repetitive line voltage during switch-on or line interruption: 13.2V; (3)VLN(RM) repetitive peak line voltage for a 1 ms pulse per 5s: 28V; (4)Iline line current: 140mA; (5)VI input voltage on all other pins: VCC+0.7V; (6)negative input voltage: 0.7V; (7)Ptot total power dissipation: 666mW; (8)Tamb operating ambient temperature: -25 to +75℃; (9)Tstg storage temperature: -40 to +125℃; (10)Tj junction temperature: -125℃.

Features

TEA1062A/C4/M1,112 features: (1)Low DC line voltage; operates down to 1.6 V (excluding polarity guard); (2)Voltage regulator with adjustable static resistance; (3)Provides a supply for external circuits; (4)Symmetrical high-impedance inputs (64 kW) for dynamic, magnetic or piezoelectric microphones; (5)Asymmetrical high-impedance input (32 kW) for electret microphones; (6)DTMF signal input with confidence tone; (7)Mute input for pulse or DTMF dialling; (8)Receiving amplifier for dynamic, magnetic or piezoelectric earpieces; (9)Large gain setting ranges on microphone and earpiece amplifiers; (10)Line loss compensation (line current dependent) for microphone and earpiece amplifiers; (11)Gain control curve adaptable to exchange supply; (12)DC line voltage adjustment facility.
