Product Summary
K9K8G08UOA-PCBO is a 8G-bit NAND Flash Memory with spare 256M-bit. Its NAND cell provides the most costeffective solution for the solid state application market. A program operation can be performed in typical 200μs on the (2K+64)Byte page and an erase operation can be performed in typical 1.5ms on a (128K+4K)Byte block. The K9K8G08UOA-PCBO is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.
Parametrics
K9K8G08UOA-PCBO absolute maximum ratings: (1)Voltage on any pin relative to VSS: VCC=-0.6 to +4.6V, VIN=-0.6V to +4.6V, VI/O=-0.6 to VCC+0.3V(＜4.6V); (2)Temperature Under Bias: -10 to +125℃; (3)Storage Temperature: -65 to +150℃; (4)Short Circuit Current: 5mA.
Features
K9K8G08UOA-PCBO features: (1)Voltage Supply: 2.70V ~ 3.60V; (2)Organization Memory Cell Array : (1G + 32M) x 8bit; (3)Data Register : (2K + 64) x 8bit; (4)Automatic Program and Erase: Page Program : (2K + 64)Byte; (5)Block Erase : (128K + 4K)Byte; (6)Page Read Operation: Page Size : (2K + 64)Byte; (7)Command/Address/Data Multiplexed I/O Port; (8)Command Driven Operation; (9)Intelligent Copy-Back with internal 1bit/528Byte EDC; (10)Unique ID for Copyright Protection.

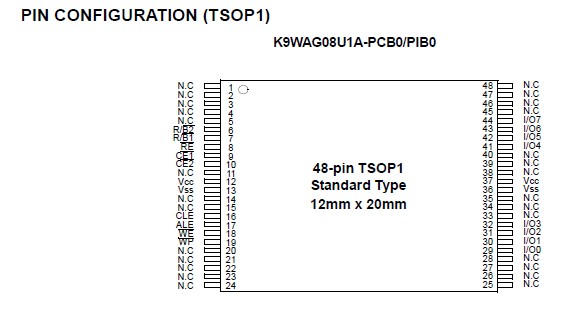

Diagrams
 |
