ADE7752AARZ

Product Summary

The ADE7752AARZ is a Polyphase Energy Metering IC with Pulse Output. The ADE7752AARZ supplies average real power information on the low frequency outputs, F1 and F2. These logic outputs may be used to directly drive an electromechanical counter or to interface with an MCU. The ADE7752AARZ remains inactive until the supply voltage on VDD reaches 4 V. If the supply falls below 4 V, no pulses are issued on F1, F2, and CF.

Parametrics

ADE7752AARZ absolute maximum ratings: (1)VDD to AGND:-0.3V to +7V; (2)VDD to DGND:-0.3V to +7V; (3)Analog Input Voltage to AGND, VAP, VBP, VCP, VN, IAP, IAN, IBP, IBN, ICP, and ICN:-6V to +6V ; (4)Reference Input Voltage to AGND:-0.3V to VDD + 0.3V; (5)Digital Input Voltage to DGND:-0.3V to VDD + 0.3V; (6)Digital Output Voltage to DGND:-0.3V to VDD + 0.3V; (7)Operating Temperature Range: -40℃ to +85℃; (8)Storage Temperature Range:-65℃ to +150℃ ; (9)Junction Temperature:150℃ ; (10)24-Lead SOIC, Power Dissipation:88 mW ; (11)θJA Thermal Impedance:250℃/W ; (12)Lead Temperature, Soldering: Vapor Phase (60 sec):215℃, Infrared (15 sec):220℃.

Features

ADE7752AARZ features: (1)High accuracy, supports 50 Hz/60 Hz IEC62053-2x ; (2)Less than 0.1% error over a dynamic range of 500 to 1 ; (3)Compatible with 3-phase/3-wire delta and 3-phase/4-wire Wye configurations ; (4)The ADE7752 supplies average real power on frequency outputs F1 and F2 ; (5)High frequency output CF is intended for calibration and supplies instantaneous real power ; (6)Logic output REVP indicates a potential miswiring or negative power for each phase ; (7)Direct drive for electromechanical counters and 2-phase stepper motors (F1 and F2) ; (8)Proprietary ADCs and DSP provide high accuracy over large variations in environmental conditions and time ; (9)On-chip power supply monitoring ; (10)On-chip creep protection (no load threshold) ; (11)On-chip reference 2.4 V ±8% (20 ppm/℃ typical) with ; (12)external overdrive capability ; (13)Single 5 V supply, low power 30 mW typical; (14)Low cost CMOS process.

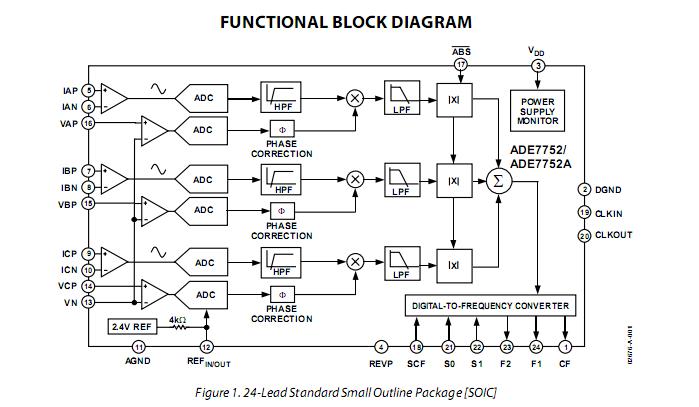

Diagrams
