Product Summary

The IPD90P03P4L-04 is a OptiMOS-P2 Power-Transistor.

Parametrics

IPD90P03P4L-04 absolute maximum ratings: (1)Continuous drain current: -90A; (2)Pulsed drain current: -360A; (3)Avalanche energy, single pulse: 370 mJ; (4)Avalanche current, single pulse: -90 A; (5)Gate source voltage VGS: +5/-16 V; (6)Power dissipation Ptot T C=25 ℃: 137 W; (7)Operating and storage temperature T j, T stg: -55 ... +175 ℃.

Features

IPD90P03P4L-04 features: (1)P-channel - Logic Level - Enhancement mode; (2)AEC qualified; (3)MSL1 up to 260℃ peak reflow; (4)175℃ operating temperature; (5)Green package (RoHS compliant); (6)100% Avalanche tested; (7)Intended for reverse battery protection.

Diagrams

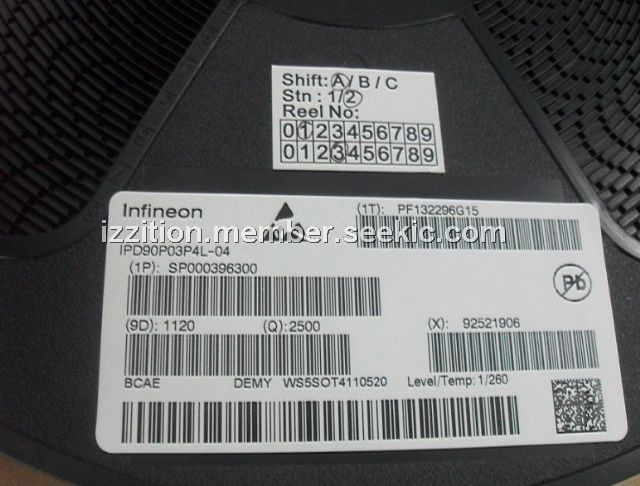

IPD90P03P4L-04 circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IPD90P03P4L-04
IPD90P03P4L-04

Infineon Technologies

MOSFET P-Channel MOSFET 30V

Data Sheet

0-1: $1.02
1-10: $0.89
10-100: $0.74
100-500: $0.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IPD90N03S4L-02
IPD90N03S4L-02

Infineon Technologies

MOSFET OPTIMOS-T2 PWR-TRANS 30V 90A 2.2mOhms

Data Sheet

0-1520: $0.38
1520-2500: $0.32
2500-5000: $0.31
5000-10000: $0.29
IPD90N03S4L-03
IPD90N03S4L-03

Infineon Technologies

MOSFET OPTIMOS-T2 PWR-TRANS 30V 90A 3mOhms

Data Sheet

0-1: $0.61
1-10: $0.54
10-100: $0.43
100-500: $0.33
IPD90N04S3-04
IPD90N04S3-04

Infineon Technologies

MOSFET OPTIMOS -T PWR-TRANS 40V 90A 3.6mOhms

Data Sheet

0-1: $1.13
1-10: $0.97
10-100: $0.79
100-500: $0.61
IPD90N04S3-H4
IPD90N04S3-H4

Infineon Technologies

MOSFET N-Channel 40V MOSFET

Data Sheet

0-1520: $0.38
1520-2500: $0.32
2500-5000: $0.31
5000-10000: $0.29
IPD90N04S4-02
IPD90N04S4-02

Infineon Technologies

MOSFET N-Channel 40V MOSFET

Data Sheet

0-1730: $0.52
1730-2000: $0.48
2000-2500: $0.48
2500-5000: $0.46
IPD90N04S4-03
IPD90N04S4-03

Infineon Technologies

MOSFET N-Channel 40V MOSFET

Data Sheet

0-1520: $0.45
1520-2000: $0.38
2000-2500: $0.38
2500-5000: $0.36
