Product Summary

The SN74HC273NSR is an octal D-type flip-flop with clear.

Parametrics

SN74HC273NSR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: 70℃/W; (7)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74HC273NSR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 12 ns; (5)±4mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Contain Eight Flip-Flops With Single-Rail Outputs.

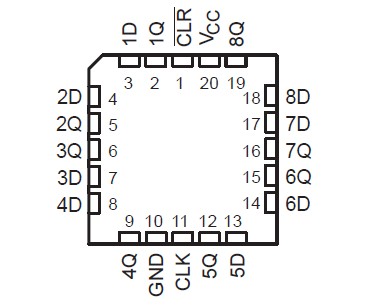

Diagrams

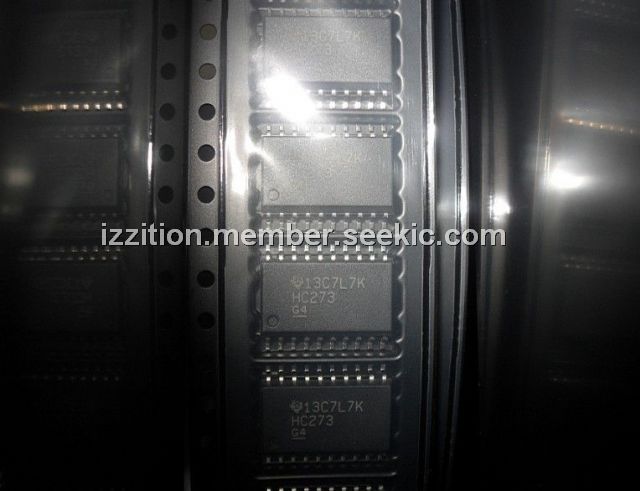

SN74HC273NSR package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74HC273NSR
SN74HC273NSR

Texas Instruments

Flip Flops Octal D-Type Flip-Flop w/Clear

Data Sheet

0-1: $0.34
1-25: $0.25
25-100: $0.21
100-250: $0.19
SN74HC273NSRG4
SN74HC273NSRG4

Texas Instruments

Flip Flops Octal D-Type Flip-Flop w/Clear

Data Sheet

0-1: $0.28
1-25: $0.22
25-100: $0.19
100-250: $0.17
