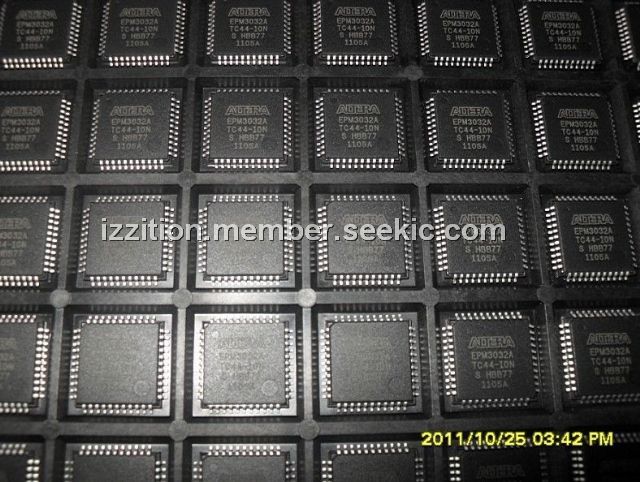

EPM3032ATC44-10N

low–cost, high–performance device, QFP44, –2.0 to 5.75 V, CMOS EEPROM, 227.3 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.15

PartNumber:: EPM3032ATC44-10N

Brand:: Altera Corporation - ALTR | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-01

From Other Seller

Part Number:EPM3032ATC44-10N
US $1.10 - 1.15
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EPM3032ATC44-10N is a low–cost, high–performance device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EPM3032ATC44-10N operates with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.

Parametrics

EPM3032ATC44-10N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –0.5 to 4.6 V; (2)VI, DC input voltage: –2.0 to 5.75 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TA, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature PQFP and TQFP packages, under bias: 135 ℃.

Features

EPM3032ATC44-10N features: (1)High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX architecture; (2)3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability; ISP circuitry compliant with IEEE Std. 1532; (3)Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4)Enhanced ISP algorithm for faster programming; (5)ISP_Done bit to ensure complete programming; (6)Pull-up resistor on I/O pins during in–system programming; (7)High–density PLDs ranging from 600 to 10,000 usable gates; (8)4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz; (9)MultiVoltTM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic levels.
