Product Summary
The BTS432E2E3062A is a smart highside power switch. It is compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads. The device is used in all types of resistive, inductive and capacitve loads replacing electromechanical relays and discrete circuits.
Parametrics
Maximum ratings: (1)Supply, Vbb: 63 V; (2)Load dump protection VLoadDump = UA + Vs, UA = 13.5 V RI= 2 Ω, RL= 1.1 Ω, td= 200 ms, IN= low or high, Vs: 66.5 V; (3)Load current, IL: self-limited A; (4)Operating temperature range, Tj: -40 to +150 ℃; (5)Storage temperature range, Tstg: -55 to +150 ℃; (6)Power dissipation (DC), Ptot: 125 W; (7)Inductive load switch-off energy dissipation, single pulse, Tj=150 ℃: EAS: 1.7 J; (8)Electrostatic discharge capability (ESD)(Human Body Model), VESD: 2.0 kV; (9)Input voltage (DC), VIN: -0.5 to +6 V; (10)Current through input pin (DC), IIN: ±5.0 mA; (11)Current through status pin (DC), IST: ±5.0mA; (12)Thermal resistance: chip - case:RthJC:≤ 1K/W; junction - ambient (free air):RthJA: ≤ 75 K/W; SMD version, device on pcb4): ≤ tbd.
Features
Features: (1)Load dump and reverse battery protection1); (2)Clamp of negative voltage at output; (3)Short-circuit protection; (4)Current limitation; (5)Thermal shutdown; (6)Diagnostic feedback; (7)Open load detection in ON-state; (8)CMOS compatible input; (9)Electrostatic discharge (ESD) protection; (10)Loss of ground and loss of Vbb protection2); (11)Overvoltage protection; (12)Undervoltage and overvoltage shutdown with autorestart and hysteresis.

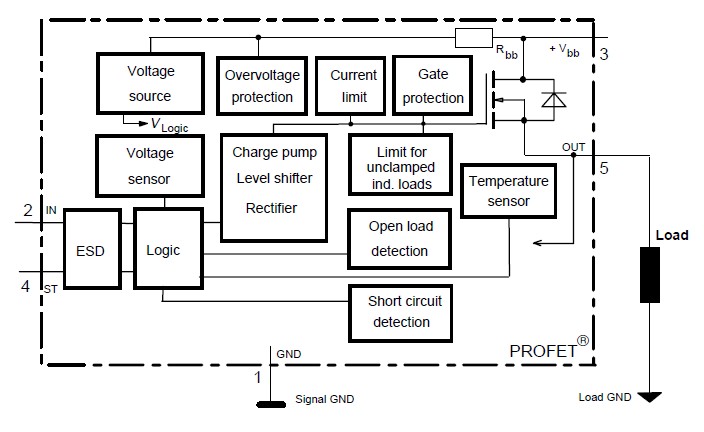

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS432E2E3062AXT |
Infineon Technologies |
Power Switch ICs - Power Distribution PROFET SMART HI SIDE POWER SWITCH 63V |
