Product Summary

The DS1867S-50 is a Dual Digital Potentiometer with EEPROM. It is the nonvolatile version of the popular DS1267 Dual Digital Potentiometer. The DS1867S-50 consists of two digitally controlled potentiometers having 256-position wiper settings. Wiper position is maintained in the absence of power through the use of EEPROM memory cell arrays. Communication and control of the device are accomplished over a 3-wire serial port which allows reads and writes of the wiper position. Both potentiometers can be stacked for increased total resistance with the same resolution. For multiple-device, single-processor environments, the DS1867S-50 can be cascaded for control over a single 3-wire bus. The DS1867S-50 is offered in three standard resistance values.

Parametrics

DS1867S-50 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground (VB=GND): -1.0V to +5.5V; (2)Voltage on Resistor Pins when VB=-5.5V: -5.5V to +5.5V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -55℃ to +125℃; (5)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1867S-50 features: (1)Nonvolatile version of the popular DS1267; (2)Low power consumption, quiet, pumpless design; (3)Operates from single 5V or ±5V supplies; (4)Two digitally controlled, 256-position potentiometers; (5)Wiper position is maintained in the absence of power; (6)Serial port provides means for setting and reading both potentiometers; (7)Resistors can be connected in series to provide increased total resistance; (8)16-pin SOIC and 20-pin TSSOP for surface mount applications; (9)Standard resistance values: 50kW; (10)Operating Temperature Range: Industrial: -40 to +85℃.

Diagrams

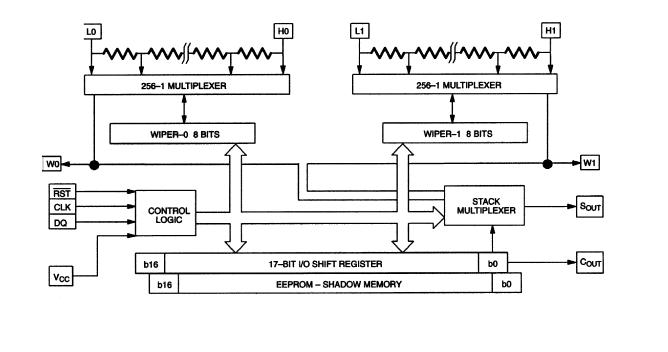

DS1867S-50 block diagram
