Product Summary

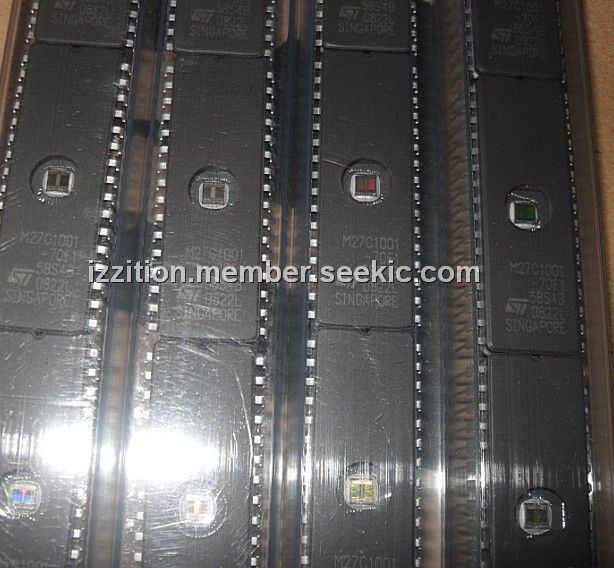

The M27C1001-70F1 is a 1 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits. The FDIP32W (window ceramic frit-seal package) of M27C1001-70F1 and the LCCC32W (leadless chip carrier package) have a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C1001-70F1 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
Parametrics
M27C1001-70F1 absolute maximum ratings: (1)Ambient Operating Temperature: –40 to 125 ℃; (2)Temperature Under Bias: –50 to 125 ℃; (3)Storage Temperature: –65 to 150 ℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)VPP Program Supply Voltage: –2 to 14 V.
Features
M27C1001-70F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 35ns; (3)low power consumption: Active Current 30mA at 5Mhz, Standby Current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h, Device Code: 05h.

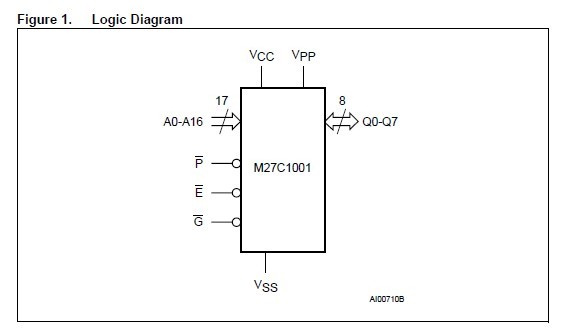

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C1001-70F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
