Product Summary

The AD688AQ is a high precision ±10 V tracking reference. Low tracking error, low initial error, and low temperature drift give the AD688AQ reference absolute ±10 V accuracy performance previously unavailable in monolithic form. The AD688AQ uses a proprietary ion-implanted buried Zener diode, and laser wafer drift trimming of high stability thin-film resistors to provide outstanding performance.

Parametrics

AD688AQ absolute maximum ratings: (1)+VS to -VS: 36V; (2)Power Dissipation (25℃) Q Package: 600mW; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temperature (Soldering, 10 s): +300℃; (5)Package Thermal Resistance Q (θJA/θJC): 120/35 ℃/W; (6)Output Protection: All outputs safe if shorted to ground.

Features

AD688AQ features: (1)±10 V tracking outputs; (2)Kelvin connections; (3)Low tracking error: 1.5 mV; (4)Low initial error: 2.0 mV; (5)Low drift: 1.5 ppm/℃; (6)Low noise: 6 μV p-p; (7)Flexible output force and sense terminals High impedance ground sense; (8)Wide body SOIC and CERDIP packages.

Diagrams

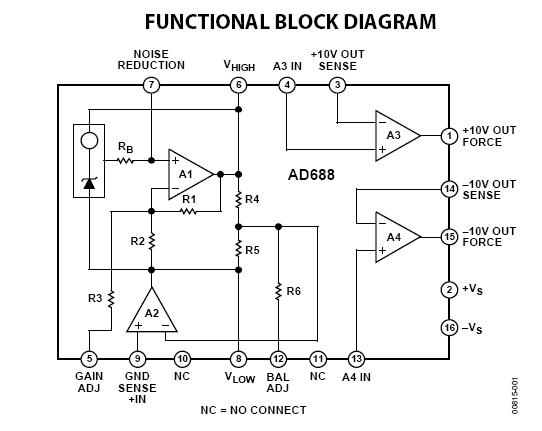

AD688AQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

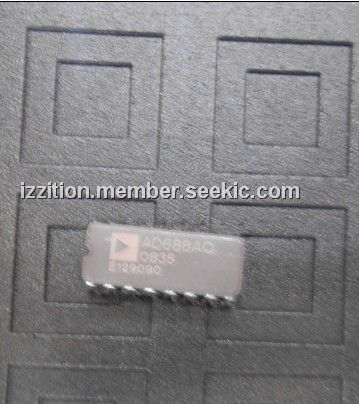

AD688AQ
AD688AQ

IC VREF SERIES PREC +-10V 16CDIP
Data Sheet
0-1: $18.07
1-25: $15.36
25-100: $14.27
100-250: $13.10
250-500: $12.47
500-1000: $12.05
