Product Summary

The MIC5014YM MOSFET driver is designed for gate control of N-channel, enhancement-mode, power MOSFET used as high-side or low-side switch. The MIC5014YM can sustain an on-state output indefinitely. The MIC5014YM operates from a 2.75V to 30V supply. In highside configurations, the driver can control MOSFETs that switch loads of up to 30V. In low-side configurations, with separate supplies, the maximum switched voltage is limited only by the MOSFET.

Parametrics

MIC5014YM absolute maximum ratings: (1)Supply Voltage: -20V to 60V; (2)Input Voltage: -20V to V+; (3)Source Voltage: -20V to V+; (4)Source Current: 50mA; (5)Gate Voltage: -20V to 50V; (6)Junction Temperature: 150℃; (7)θJA (Plastic DIP): 160℃/W; (8)θJA (SOIC): 170℃/W; (9)Ambient Temperature: -40℃ to +85℃; (10)Storage Temperature: -65℃ to +150℃; (11)Lead Temperature: 260℃; (12)Supply Voltage (V+): 2.75V to 30V.

Features

MIC5014YM features: (1)2.75V to 30V operation; (2)100μA maximum supply current (5V supply); (3)15μA typical off-state current; (4)Internal charge pump; (5)TTL compatible input; (6)Withstands 60V transient (load dump); (7)Reverse battery protected to –20V; (8)Inductive spike protected to –20V; (9)Overvoltage shutdown at 35V; (10)Internal 15V gate protection; (11)Minimum external parts; (12)Operates in high-side or low-side configurations; (13)1μA control input pull-off; (14)Inverting and noninverting versions.

Diagrams

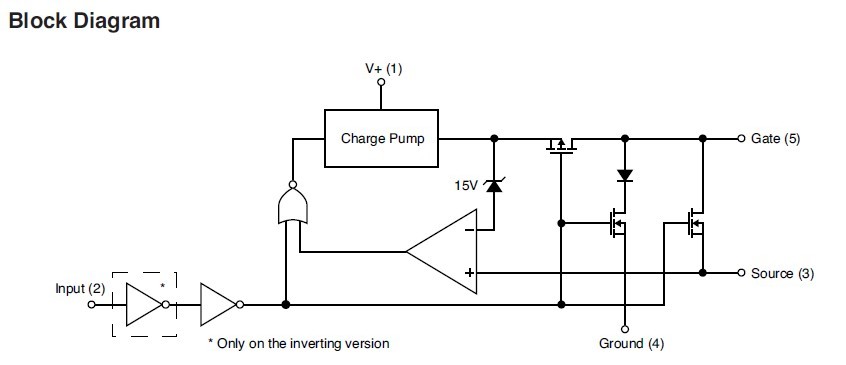

MIC5014YM Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC5014YM
MIC5014YM


IC DRIVER MOSF HI/LOW SIDE 8SOIC

Data Sheet

0-1: $1.23
1-25: $0.98
25-100: $0.74
100-250: $0.69
250-500: $0.66
MIC5014YM TR
MIC5014YM TR


IC DRIVER MOSF HI/LO SIDE 8SOIC

Data Sheet

0-1: $1.23
1-25: $0.98
25-100: $0.74
100-250: $0.69
250-500: $0.66
