Product Summary
The RTL8019AS is a highly integrated Ethernet Controller which offers a simple solution to implement a Plug and Play NE2000 compatible adapter with full-duplex and power down features. The RTL8019AS offers the page mode function which can support up to 4M-byte BROM within only 16k-byte system memory space.
Parametrics
RTL8019AS absolute maximum ratings: (1)Operating Temperature:0℃ to 70℃; (2)Storage Temperature:-65℃& to 140℃ ; (3)All Outputs and Supply Voltages, with respect to Ground:-0.5V to 7V.
Features
RTL8019AS features: (1)100-pin PQFP ; (2)RTL8019 software compatible ; (3)Supports PnP auto detect mode (RTL8019AS only) ; (4)Compliant to Ethernet II and IEEE802.3 10Base5, 10Base2, 10BaseT ; (5)Software compatible with NE2000 on both 8 and 16-bit slots ; (6)Supports both jumper and jumperless modes ; (7)Supports Microsoft‘s Plug and Play configuration for jumperless mode ; (8)Supports Full-Duplex Ethernet function to double channel bandwidth; (9)Built-in data prefetch function to improve performance ; (10)Supports UTP, AUI & BNC auto-detect; (11)Supports auto polarity correction for 10BaseT ; (12)Support 8 IRQ lines ; (13)Supports 16 I/O base address options& and extra I/O address fully decode mode.

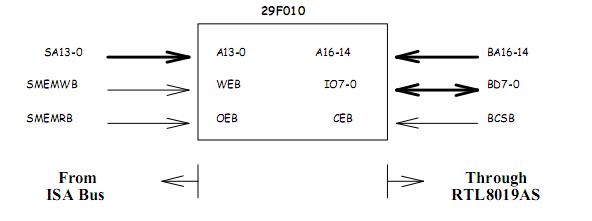

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RTL8019AS |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
RTL8019AS-LF |
Other |
|
Data Sheet |
Negotiable |
|
||||
