Product Summary

The TDA7240AV is a 20W bridge audio amplifier IC designed specially for car radio applications. Thanks to the lowexternal part count and compact Heptawatt 7-pin power package the TDA7240AV occupies little space on the printed circuit board.

Parametrics

TDA7240AV absolute maximum ratings: (1)Vs Operating Supply Voltage 18 V; (2)Vs DC Supply Voltage 28 V; (3)Vs Peak Supply Voltage (for 50ms) 40 V; (4)Io (*) Peak Output Current (non repetitive t = 0.1ms) 4.5 A; (5)Io (*) Peak Output Current (repetitive f ≥10Hz) 3.5 A; (6)Ptot Power Dissipation at Tcase = 85℃ 16 W; (7)Tstg,Tj Storage and Junction Temperature –40 to 150℃.

Features

TDA7240AV features: (1)compact heptawatt package; (2)fewexternal components; (3)output protected against short circuits to ground and across load; (4)dump transientt; (5)hermal shutdown; (6)loudspeakerprotection; (7)high current capability; (8)lowdistortion/lownoise.

Diagrams

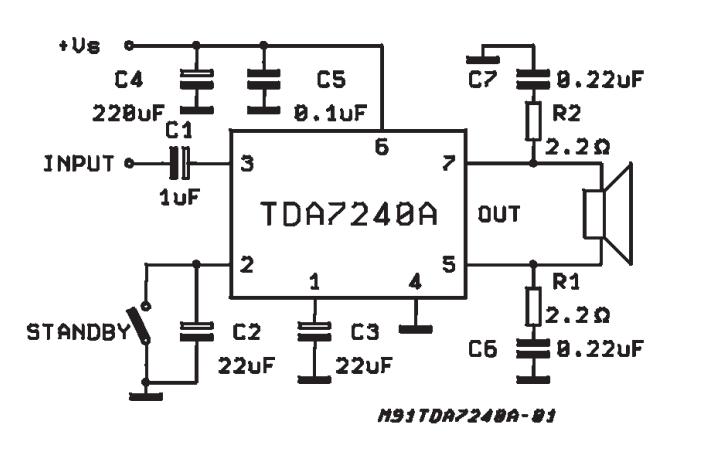

TDA7240AV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA7240AV
TDA7240AV

STMicroelectronics

Audio Amplifiers 20W Bridge Amplifier

Data Sheet

Negotiable
