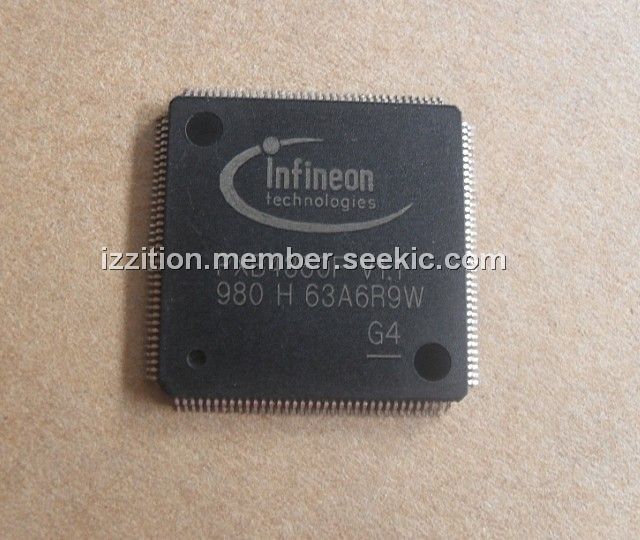

PXB4360FV1.1

content addressable memory, element CAME, QFP, 4.6 V, 32Bit, 686 MBit/s

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.50~13.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $12.50~13.00

PartNumber:: PXB4360FV1.1

Brand:: Infineon Technologies AG - Infineon | Pack: QFP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-31

From Other Seller

Part Number:PXB4360FV1.1
US $12.50 - 13.00
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

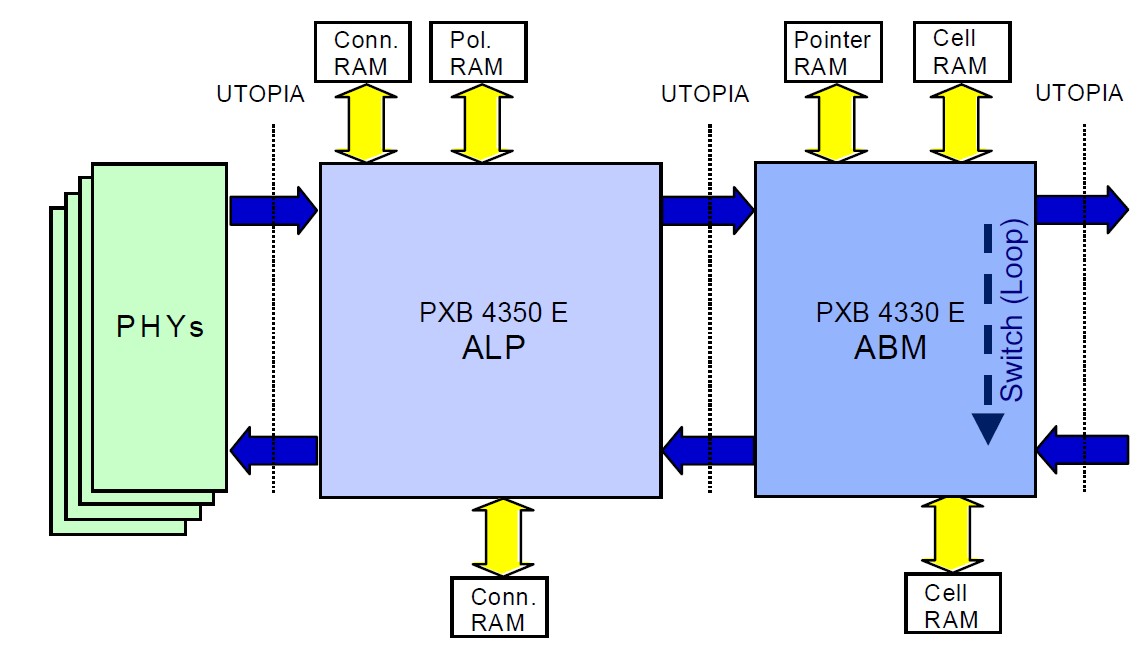

The PXB4360FV1.1 is a content addressable memory element CAME. The PXB4360FV1.1 is achieved with only two chips, ALP and ABM. The combination of the PXB4360FV1.1 provides elementary ATM functionality such as header translation, policing, OAM support, multicast, and traffic management. The PXB4360FV1.1 functionality is upgradeable to full OAM support by the AOP and to arbitrary header translation by the CAME.

Parametrics

PXB4360FV1.1 absolute maximum ratings: (1)Supply Voltage 9CC: -0.5 to 4.6 V; (2)Input Voltage 9IN: -0.5 to 9CC+0.5 V; (3)Power Dissipation 3V <0.3 W; (4)Storage Temperature 7S: -65 to 150 ℃.

Features

PXB4360FV1.1 features: (1)ALP Co-processor for Address Reduction to search for a Port Number PN, VPI and VCI the corresponding Local Connection Identifier LCI; (2)Delivers search result during one cell cycle for Bit rates up to 686 MBit/s; (3)CAME supports up to 8192 search entries; (4)Master or Slave mode is selectable to cascade 2 CAME chips to support up to 16384 search entries; (5)16-bit or 32-Bit Data Interface is selectable; ALP uses the 16-Bit interface; (6)Microprocessor Interface is not necessary as CAME is configurated via Address and Data Bus.
