Product Summary
The SL811HST-AXC is an Embedded USB Host/Slave Controller capable of communicating in either full speed or low speed. The SL811HST-AXC interfaces to devices such as microprocessors, microcontrollers, DSPs, or directly to a variety of buses such as ISA, PCMCIA, and others. The SL811HST-AXC USB Host Controller conforms to USB Specification 1.1. The SL811HST-AXC data port and microprocessor interface provide an 8-bit data path I/O or DMA bidirectional, with interrupt support to allow easy interface to standard microprocessors or microcontrollers such as Motorola or Intel CPUs and many others.
Parametrics
SL811HST-AXC absolute maximum ratings: (1)Storage Temperature: –40 to 125℃; (2)Voltage on any pin with respect to ground: –0.3 V to 6.0 V; (3)Power Supply Voltage (VDD): 4.0 V; (4)Power Supply Voltage (VDD1): 4.0 V; (5)Lead Temperature (10 seconds): 180℃.
Features
SL811HST-AXC features: (1)First USB Host/Slave controller for embedded systems in the; (2)market with a standard microprocessor bus interface; (3)Supports both full speed (12 Mbps) and low speed (1.5 Mbps); (4)USB transfer in both master and slave modes; (5)Conforms to USB Specification 1.1 for full- and low speed; (6)Operates as a single USB host or slave under software control; (7)Automatic detection of either low- or full speed devices; (8)8-bit bidirectional data, port I/O (DMA supported in slave mode); (9)On-chip SIE asnd USB transceivers; (10)On-chip single root HUB support; (11)256-byte internal SRAM buffer; (12)Ping-pong buffers for improved performance; (13)Operates from 12 or 48 MHz crystal or oscillator (built-in DPLL); (14)5 V-tolerant interface; (15)Suspend/resume, wake up, and low-power modes are supported; (16)Auto-generation of SOF and CRC5/16; (17)Auto-address increment mode, saves memory READ/WRITE cycles; (18)Development kit including source code drivers is available.

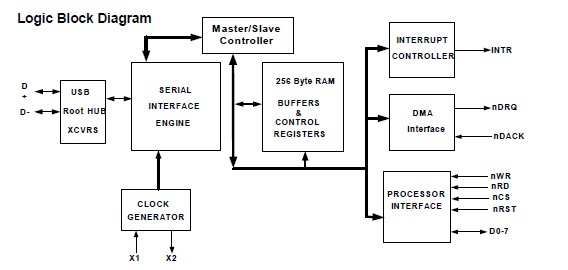

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SL811HST-AXC |
![]() Cypress Semiconductor |
![]() I/O Controller Interface IC 256B HOST COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
![]() |
![]() SL811HS |
![]() |
![]() IC USB HOST/SLAVE CTRLR 28PLCC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SL811HST-AC |
![]() |
![]() IC USB HOST/SLAVE CTRLR 48LQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SL811HST-AXC |
![]() Cypress Semiconductor |
![]() I/O Controller Interface IC 256B HOST COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() SL811S |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SL811S/T |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() SL811S-DK |
![]() |
![]() TOOLS DEVELOPMENT FOR SL811 |
![]() Data Sheet |
![]() Negotiable |
|
