Product Summary

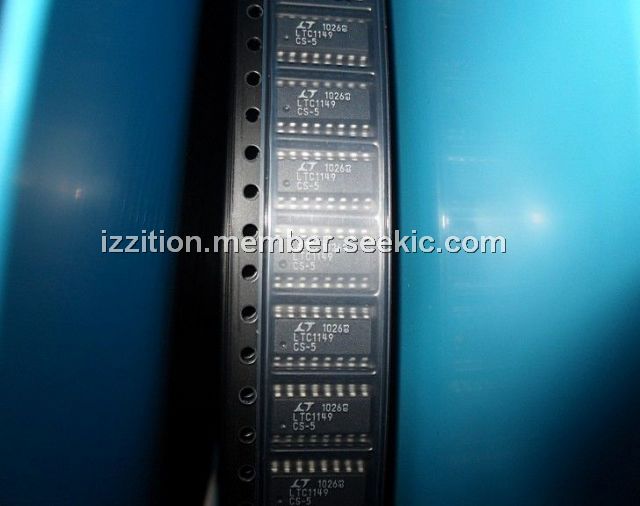

The LTC1149CS-5 is synchronous stepdown switching regulator controller featuring automatic Burst ModeTM operation to maintain high efficiencies at low output currents. These devices drive external complementary power MOSFETs at switching frequencies up to 250kHz using a constant off-time current-mode architecture. The LTC1149CS-5 incorporates automatic power saving Burst Mode operation when load currents drop below the level required for continuous operation.
Parametrics
LTC1149CS-5 absolute maximum ratings: (1)Input Supply Voltage (Pin 2): – 15V to 60V; (2)VCC Output Current (Pin 3): 50mA; (3)VCC Input Voltage (Pin 5): 16V; (4)Continuous Output Current (Pins 4, 13): 50mA; (5)Sense Voltages (Pins 8, 9): VIN 3 12.7V, 13V to –0.3V; VIN < 12.7V, (VCC + 0.3V) to –0.3V; (6)Shutdown Voltages (Pins 10, 15): 7V; (7)Operating Temperature Range: 0 to 70℃; (8)Temperature Range: –40 to 85℃; (9)Junction Temperature (Note 1): 125℃; (10)Storage Temperature Range: – 65 to 150℃; (11)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1149CS-5 features: (1)Operation to 48V Input Voltage; (2)Ultrahigh Efficiency: Up to 95%; (3)Current Mode Operation for Excellent Line and Load Transient Response; (4)High Efficiency Maintained over Wide Current Range; (5)Logic-Controlled Micropower Shutdown; (6)Short-Circuit Protection; (7)Very Low Dropout Operation: 100% Duty Cycle; (8)Synchronous FET Switching for High Efficiency; (9)Adaptive Nonoverlap Gate Drives; (10)Available in 16-Pin Narrow SO Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1149CS-5 |
|
IC REG CTRLR BUCK PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
|
LTC1149CS-5#PBF |
|
IC REG CTRLR BUCK PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
|
LTC1149CS-5#TRPBF |
|
IC REG CTRLR BUCK PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
|
LTC1149CS-5#TR |
|
IC REG CTRLR BUCK PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
