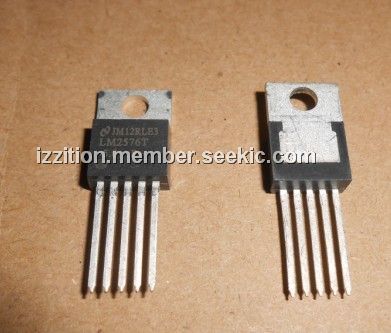

LM2576T-5.0

LM2576T-5.0, 5V, 3A, TO220-5, step-down voltage regulator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: LM2576T-5.0

Brand:: National Semiconductor - NS | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-05

From Other Seller

Part Number:LM2576T-5.0
US $0.30 - 0.40
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

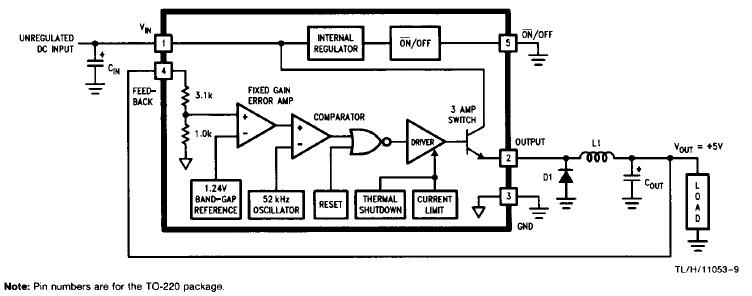

The LM2576T-5.0 is a step-down voltage regulator, provides all the active functions for a step-down(buck) voltage regulator. This device features a 5V out-put capable of driving a 3A load with excellent line and load regulation.The applications of the LM2576T-5.0 include simple high-efficiency step-down (buck) regulator, efficient pre-regulator for linear regulators, on-card switching regulators, positive to negative converter (inverting, buck-boost), isolated flyback converter using minimum number of external components, negative boost converter.

Parametrics

LM2576T-5.0 absolute maximum ratings: (1)Maximum supply voltage: 45V; (2)ON/OFF Pin input voltage: －0.3V≤V≤+40V; (3)Output voltage to ground(steady state): －1V; (4)Power Disspation: internally limited; (5)Storage temperature range: －65℃ to +150℃.

Features

LM2576T-5.0 features: (1)5V output, ± 3% max over line and load conditions; (2)Guaranteed 3A output current; (3)Wide input voltage range, 7V to 40V; (4)Requries only 4 external components; (5)52kHz fixed frequency inrernal oscailltor; (6)Low power standby mode, IQ typically ＜200μA; (7)80% efficiency; (8)Uses readily available standard inductors; (9)Thermal shutdown and current limit protection; (10)100% electrical thermal limit burn-in.
