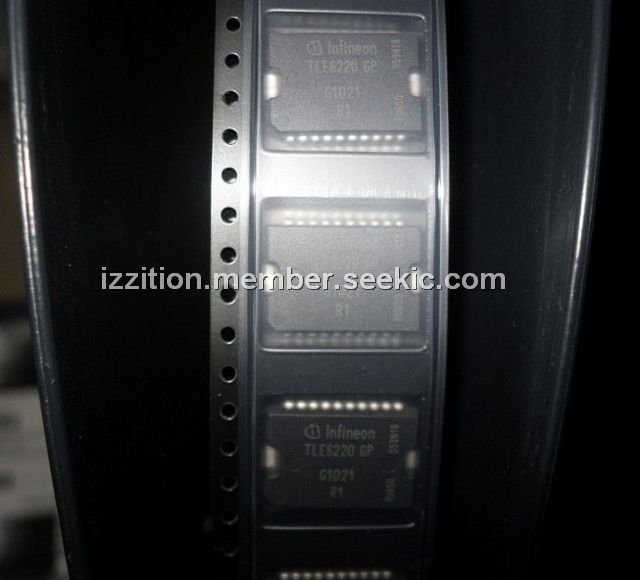

Product Summary
The TLE6220GP is the smart quad low-side switch with a Serial Peripheral Interface (SPI) and four open drain DMOS output stages. The TLE6220GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages can be controlled direct in parallel for PWM applications (injector coils), or through serial control via the SPI. Therefore the TLE6220GP is particularly suitable for engine management and powertrain systems.
Parametrics
TLE6220GP absolute maximum ratings: (1)Supply Voltage: -0.3 to +7 V; (2)Continuous Drain Source Voltage: 45 V; (3)Input Voltage, All Inputs and Data Lines: - 0.3 to + 7 V; (4)Operating Temperature Range: - 40 to + 150 ℃; (5)Storage Temperature Range: - 55 to + 150℃; (6)Output Current per Channel @ TA = 25℃ (All 4 Channels ON; Mounted on PCB ): 1 A; (7)Output Clamping Energy ID = 1A: 50 mJ; (8)Power Dissipation (DC, mounted on PCB), TA = 25℃: 3 W.
Features
TLE6220GP features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)8 bit Serial Data Input and Diagnostic Output (SPI protocol); (5)Direct Parallel Control of Four Channels for PWM Applications; (6)Cascadable with Other Quad Switches; (7)Low Quiescent Current; (8)μC Compatible Input; (9)Electostatic Discharge (ESD) Protection.

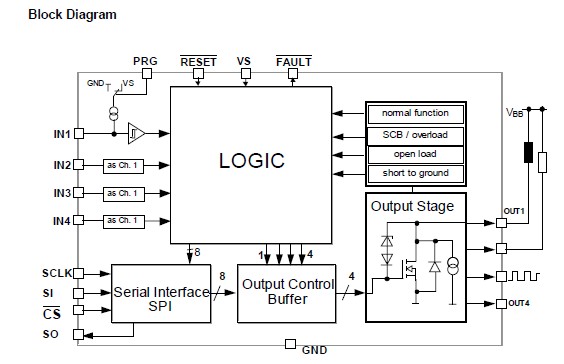

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE6220GP |
Infineon Technologies |
Power Switch ICs - Power Distribution Smart Low Side 4 Ch 45 V 3 W |
Data Sheet |
Negotiable |
|
||||||||||||
