Product Summary

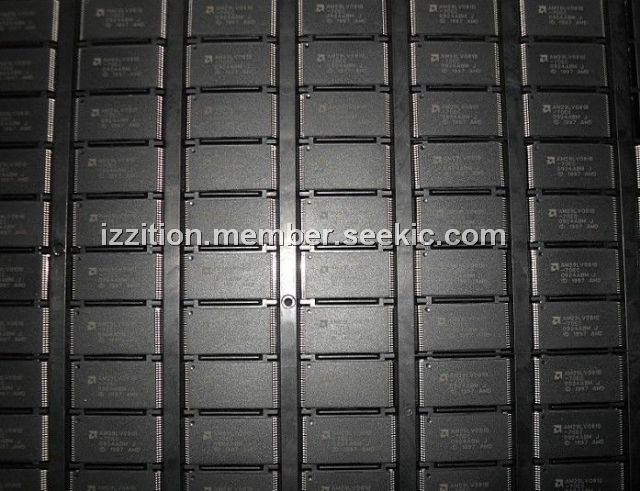

The AM29LV081B-70EC is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes. The AM29LV081B-70EC is offered in a 40-pin TSOP package. The byte-wide (x8) data appears on DQ7–DQ0. The AM29LV081B-70EC requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.
Parametrics
AM29LV081B-70EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC: –0.5 V to +4.0 V; A9, OE#, and RESET#:–0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV081B-70EC features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Unlock Bypass Program Command; (7)Embedded Algorithms; (8)Minimum 1,000,000 write cycle guarantee per sector; (9)20-year data retention at 125℃; (10)Compatibility with JEDEC standards; (11)Data# Polling and toggle bits; (12)Ready/Busy# pin (RY/BY#); (13)Erase Suspend/Erase Resume; (14)Hardware reset pin (RESET#); (15)Command sequence optimized for mass storage.

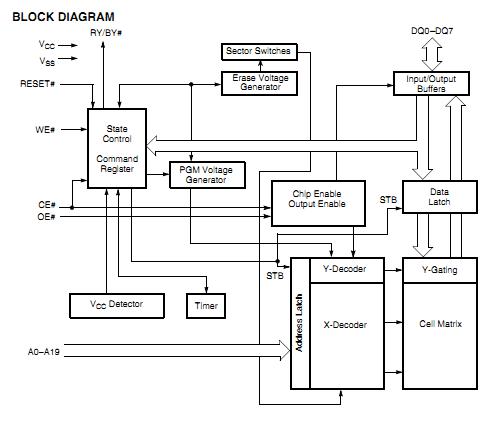

Diagrams
 |
