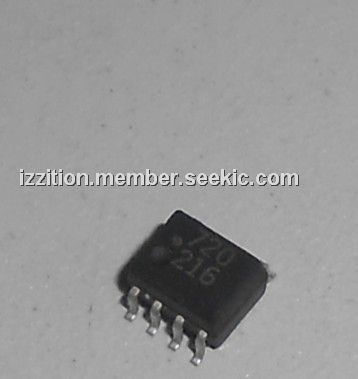

Product Summary
The HCPL-0721 is a CMOS high speed optocoupler. It utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-0721 requires only two bypass capacitors for complete CMOS compatability.
Parametrics
HCPL-0721 absolute maximum ratings: (1)Storage Temperature TS: –55 to 125℃; (2)Ambient Operating Temperature TA: –40 to +85℃; (3)Supply Voltages VDD1, VDD2: 0 to 6.0 Volts; (4)Input Voltage VI: –0.5 to VDD1 +0.5 Volts; (5)Output Voltage VO: –0.5 to VDD2 +0.5 Volts; (6)Average Output Current IO: 10 mA.
Features
HCPL-0721 features: (1)+5 V CMOS compatibility; (2)20 ns maximum prop. delay skew; (3)High speed: 25 MBd; (4)40 ns max. prop. delay; (5)10 kV/μs minimum common mode rejection; (6)–40 to 85℃ temperature range; (7)Safety and regulatory approvals.

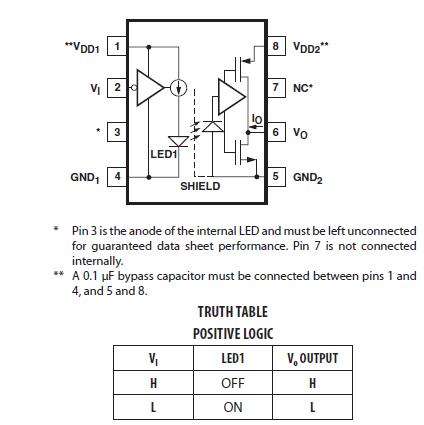

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-0721 |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721#060 |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721-000E |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721-060E |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721#560 |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721#500 |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721-560E |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-0721-500E |
Avago Technologies |
High Speed Optocouplers 25MBd 1Ch 150mA |
Data Sheet |
|
|
||||||||||||
