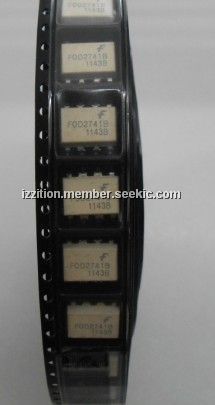

FOD2741B

FOD2741B, SOP, optically isolated error amplifier, 37 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.25~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.25~0.30

PartNumber:: FOD2741B

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-01

From Other Seller

Part Number:FOD2741B
US $0.25 - 0.30
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

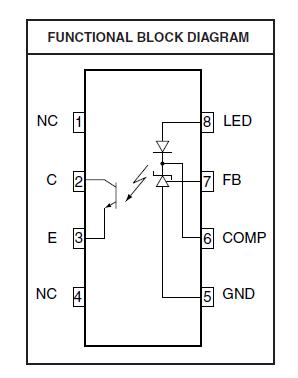

The FOD2741B is an optically isolated error amplifier. The FOD2741B Optically Isolated Amplifier consists of the popular KA431 precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide (GaAs) light emitting diode optically coupled to a silicon phototransistor. The FOD2741B comes in 3 grades of reference voltage tolerance = 2%, 1%, and 0.5%.

Parametrics

FOD2741B absolute maximum ratings: (1)Storage Temperature TSTG: -55℃ to +125℃; (2)Operating Temperature TOPR: -25℃ to +85℃; (3)Lead Solder Temperature TSOL: 260℃ for 10 sec.; (4)Input Voltage VLED: 37 V; (5)Input DC Current ILED: 20 mA; (6)Collector-Emitter Voltage VCEO: 30 V; (7)Emitter-Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA.

Features

FOD2741B features: (1)Optocoupler, precision reference and error amplifier in single package; (2)2.5V reference; (3)CTR 100% to 200%; (4)5,000V RMS isolation; (5)Low temperature coefficient 50 ppm/℃ max; (6)tolerance 1%.
