Product Summary

The LMC6484IM is the CMOS quad rail-to-rail input and output operational amplifier which provides a common-mode range that extends to both supply rails. The LMC6484IM is ideal for systems, such as data acquisition, that requires a large input signal range. Guaranteed low voltage characteristics and low power dissipation make it especially well-suited for battery-operated systems.

Parametrics

LMC6484IM absolute maximum ratings: (1)ESD Tolerance (Note): 2.0 kV; (2)Differential Input Voltage: ±Supply Voltage; (3)Voltage at Input/Output Pin (V+) + 0.3V, (V.): 0.3V; (4)Supply Voltage (V+ . V.): 16V; (5)Current at Input Pin (Note 12): ±5 mA; (6)Current at Output Pin (Notes 3, 8): ±30 mA; (7)Current at Power Supply: 40 mA; (8)Lead Temp. (Soldering, 10 sec.): 260℃.

Features

LMC6484IM features: (1)Rail-to-Rail Input Common-Mode Voltage Range (Guaranteed Over Temperature); (2)Rail-to-Rail Output Swing (within 20 mV of supply rail, 100 kΩ load); (3)Guaranteed 3V, 5V and 15V Performance; (4)Excellent CMRR and PSRR: 82 dB; (5)Ultra Low Input Current: 20 fA; (6)High Voltage Gain (RL = 500 kΩ): 130 dB; (7)nSpecified for 2 kW and 600W loads.

Diagrams

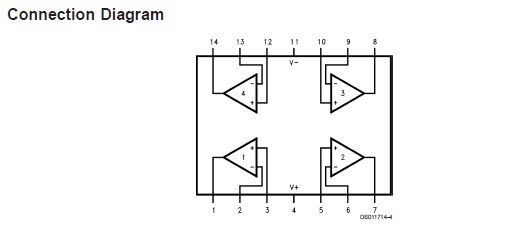

LMC6484IM connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

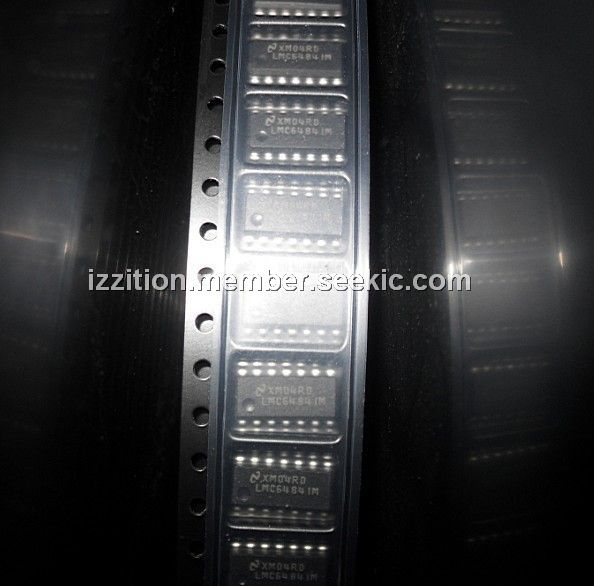

LMC6484IM
LMC6484IM
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $1.67
1-25: $1.35
25-100: $1.22
100-250: $1.08
LMC6484IM/NOPB
LMC6484IM/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps CMOS Quad R/R I/O Op Amp
Data Sheet
0-1: $1.67
1-25: $1.35
25-100: $1.22
100-250: $1.08
LMC6484IMX/NOPB
LMC6484IMX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps CMOS QUAD RRIO OP AMP
Data Sheet
0-1: $1.67
1-25: $1.35
25-100: $1.22
100-250: $1.08
LMC6484IMX
LMC6484IMX
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-2500: $0.73
2500-5000: $0.70
5000-10000: $0.67
