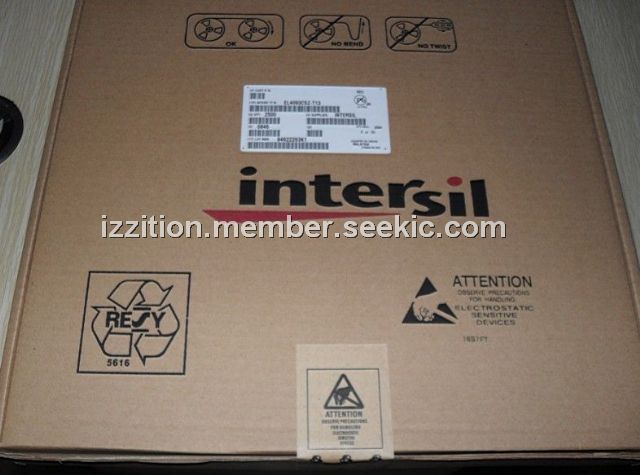

EL4093CSZ-T13

300MHz DC-Restored Video Amplifier, 16-SOIC, High accuracy DC restoration, 300MHz bandwidth

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.70~4.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.70~4.80

PartNumber:: EL4093CSZ-T13

Brand:: Intersil Corporation - Intersil | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sales's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-01

From Other Seller

Part Number:EL4093CSZ-T13
US $4.70 - 4.80
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EL4093CSZ-T13 is a complete DC-restored video amplifier subsystem, featuring low power consumption and high slew rate. The EL4093CSZ-T13 contains a current feedback amplifier and a sample and hold amplifier designed to stabilize video performance. When the HOLD logic input is low, the sample and hold may be used as a general purpose op amp to null the DC offset of the EL4093CSZ-T13. When the HOLD input goes high the sample and hold stores the correction voltage on the hold capacitor to maintain DC correction during the subsequent video scan line. The applications of the EL4093CSZ-T13 are Input amplifier in video equipment, Restoration amplifier in video mixers.

Parametrics

EL4093CSZ-T13 absolute maximum ratings: (1)V+ to V- Supply Voltage:12.6V; (2)Voltage at HOLD input:(DGND-0.7) to (DGND+5.5V); (3)Voltage at any other input:V+ to V-; (4)Difference between Sample and Hold inputs:±8V; (5)Video amplifier output current:±30mA; (6)S/H amplifier output current:±10mA; (7)Maximum current into other pins:±6mA; (8)Operating Ambient Temperature Range:-40℃ to +85℃; (9)Operating Junction Temperature:150℃; (10)Storage Temperature Range: -65℃ to +150℃.
