Product Summary

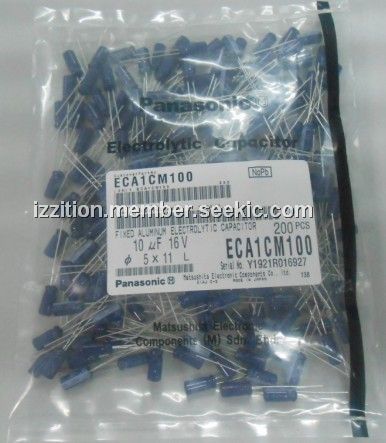

The ECA1CM100 is an Aluminum Electrolytic Capacitor.
Parametrics
ECA1CM100 absolute maximum ratings: (1)Category Temp. Range: –40℃ to + 85℃; –25℃ to +85℃; (2)Rated W.V. Range: 6.3 V.DC to 100 V.DC; 160 V.DC to 450 V.DC; (3)Nominal Cap. Range: 0.1 μF to 22000μF; 1 μF to 470 μF; (4)Capacitance Tolerance: ±20 % (120 Hz/+20℃).
Features
ECA1CM100 features: (1)Endurance : 85℃ 2000 h; (2)Smaller than series SU; (3)RoHS directive compliant.
Diagrams
 |
