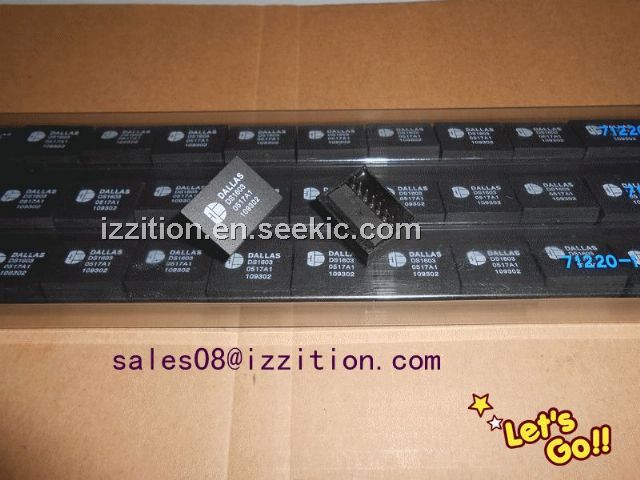

DS1603+

DS1603+, real time clock/elapsed time counter, SIP, -0.3 to 7V, 4.25V, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.50 / Piece
1000 ~ 5000 :	3.40 / Piece
6000 ~ 10000 :	3.30 / Piece

PartNumber:: DS1603+

Brand:: Maxim Integrated Products - Maxim | Pack: SIP | D/C: 10+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. sales's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-22

From Other Seller

Part Number:DS1603+
US $3.30 - 3.50
Quantity:

piece

Product Summary

The DS1603+ is a real time clock/elapsed time counter. The DS1603+ is designed to count seconds when VCC power is applied and continually count seconds under battery backup power with an additional counter regardless of the condition of VCC. The continuous counter can be used to derive time of day, week, month, and year by using a software algorithm. The VCC powered counter will automatically record the amount of time that VCC power is applied. This function is particularly useful in determining the operational time of equipment in which the DS1603+ is used.

Parametrics

DS1603+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: –0.3V to +7.0V; (2)Operating Temperature: 0 to 70℃; (3)Storage Temperature: –40 to +70℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS1603+ features: (1)Two 32–bit counters keep track of real time and elapsed time; (2)Counters keep track of seconds for over 125 years; (3)Battery powered counter counts seconds from the time battery is attached until VBAT is less than 2.5 volts; (4)VCC powered counter counts seconds while VCC is above 4.25 volts and retains the count in the absence of VCC under battery backup power; (5)Clear function resets selected counter to 0; (6)Read/Write serial port affords low pin count; (7)Powered internally by a lithium energy cell that provides over 10 years of operation; (8)1-byte protocol defines read/write, counter address and software clear function; (9)Self-contained crystal provides an accuracy of ±2 min per month; (10)Operating temperature range of 0 to 70℃; (11)Low profile SIP module.
