Product Summary

The BAV21WS-7-F is a surface mount fast switching diode.

Parametrics

BAV21WS-7-F absolute maximum ratings: (1)Repetitive Peak Reverse Voltage VRRM: 250V; (2)Working Peak Reverse Voltage; DC Blocking Voltage: 200V; (3)RMS Reverse Voltage VR(RMS): 141V; (4)Forward Continuous Current (Note 1) IFM: 250mA; (5)Average Rectified Output Current (Note 1) IO: 200mA; (6)Non-Repetitive Peak Forward Surge Current @ t = 1.0μs IFSM 2.5A; (7)Repetitive Peak Forward Surge Current IFRM: 625mA.

Features

BAV21WS-7-F features: (1)Fast Switching Speed; (2)Surface Mount Package Ideally Suited for Automated Insertion; (3)For General Purpose Switching Applications; (4)High Conductance; (5)Lead Free/RoHS Compliant (Note 3); (6)Qualified to AEC-Q101 Standards for High Reliability.

Diagrams

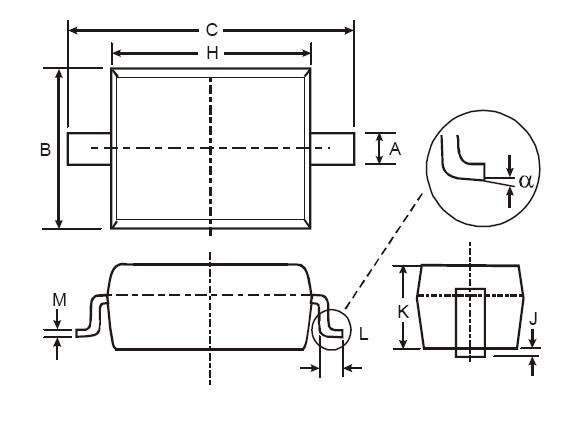

BAV21WS-7-F dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAV21WS-7-F
BAV21WS-7-F
Diodes Inc.
Diodes (General Purpose, Power, Switching) 200V 200mW
Data Sheet
0-1: $0.23
1-10: $0.18
10-100: $0.07
100-500: $0.05
