Product Summary
The 2SD2703 is a Transistor for General purpose amplification.
Parametrics
2SD2703 absolute maximum ratings: (1)Collector to base voltage, VCBO: 30V; (2)Collector to emitter voltage: 30V; (3)Emitter to base voltage, VEBO: 6V; (4)Peak collector current, ICP: 1A; (5)Collector current, IC:2A; (6)Collector power dissipation: 0.4W; (7)Junction temperature: 150℃; (8)Storage temperature: –55 to +150℃.
Features
2SD2703 features: (1)A collector current is large; (2)Collector saturation voltage is low; (3)VCE(sat) ≦ 350mV At IC = 500mA / IB = 25mA.

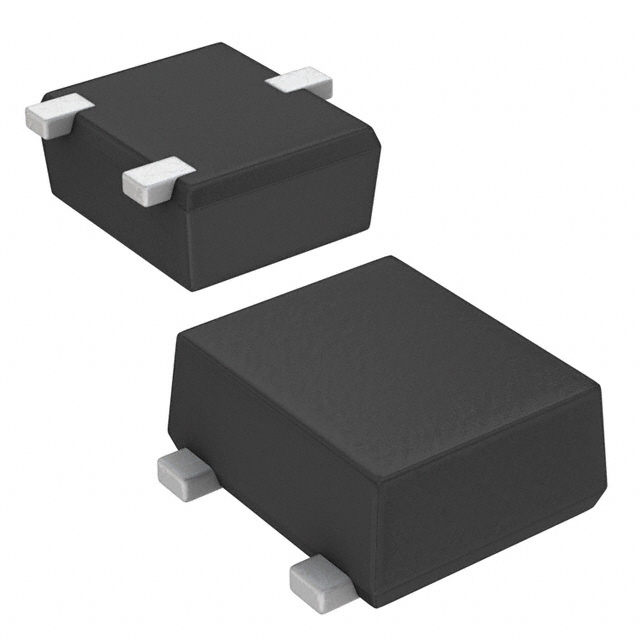

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SD2703TL |
ROHM Semiconductor |
Transistors Bipolar (BJT) 30V 1A NPN LOW |
Data Sheet |
|
|
||||||||||
