Product Summary
The 1SV242 is a variable capacitance diode.
Parametrics
1SV242 absolute maximum ratings: (1)Reverse voltage VR: 30 V; (2)Junction temperature Tj: 125 ℃; (3)Storage temperature range Tstg: -55~125 ℃.
Features
1SV242 features: (1)High capacitance ratio: C1 V/C28 V = 14.5 (typ.); (2)Low series resistance: rs = 0.65Ω (typ.); (3)Excellent C-V characteristics, and small tracking error; (4)small package.

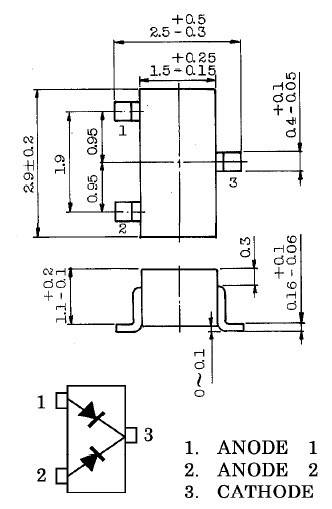

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 1SV242 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
1SV242(TPH3,F) |
|
DIODE VARACTOR DUAL 30V SC-59 |
Data Sheet |
Negotiable |
|
||||
