Product Summary

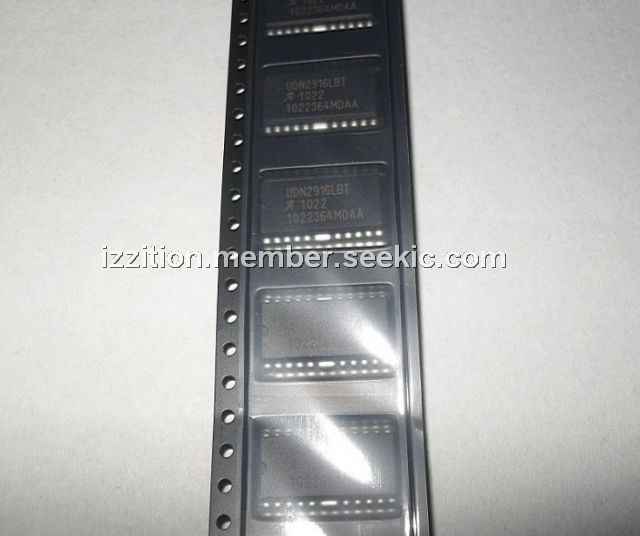

The UDN2916LBTR is a dual full-bridge pwm motor driver. It is designed to drive both windings of a bipolar stepper motor or bidirectionally control two dc motors. The UDN2916LBTR is supplied in a 24-pin dual in-line plastic batwing package with a copper lead-frame and heat sinkable tabs for improved power dissipation capabilities. It is available for operation from -20℃ to 85℃.
Parametrics
UDN2916LBTR absolute maximum ratings: (1)Motor Supply Voltage:45 V; (2)Output Current:(Peak):+1.0 A, (Continuous):+750 mA; (3)Logic Supply Voltage:7.0 V; (4)Logic Input Voltage Range:-0.3 V to VCC+0.3 V; (5)Output Emitter Voltage:1.5 V; (6)Operating Temperature Range:-20℃ to +85℃; (7)Storage Temperature Range:-55℃ to +150℃.
Features
UDN2916LBTR features: (1)750 mA Continuous Output Current; (2)45 V Output Sustaining Voltage; (3)Internal Clamp Diodes; (4)Internal PWM Current Control; (5)Low Output Saturation Voltage; (6)Internal Thermal Shutdown Circuitry; (7)Similar to Dual PBL3717, UC3770.

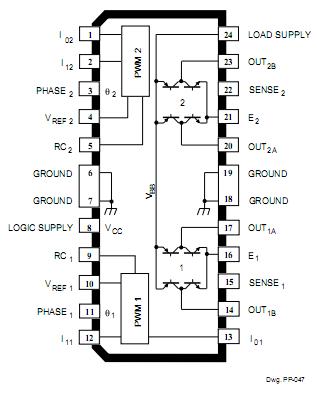

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDN2916LBTR |
|
IC MOTOR DRIVER PWM DUAL 24SOIC |
Data Sheet |
Negotiable |
|
||||
|
UDN2916LBTR-T |
|
IC MOTOR DRIVER PWM DUAL 24SOIC |
Data Sheet |
Negotiable |
|
||||
