Product Summary

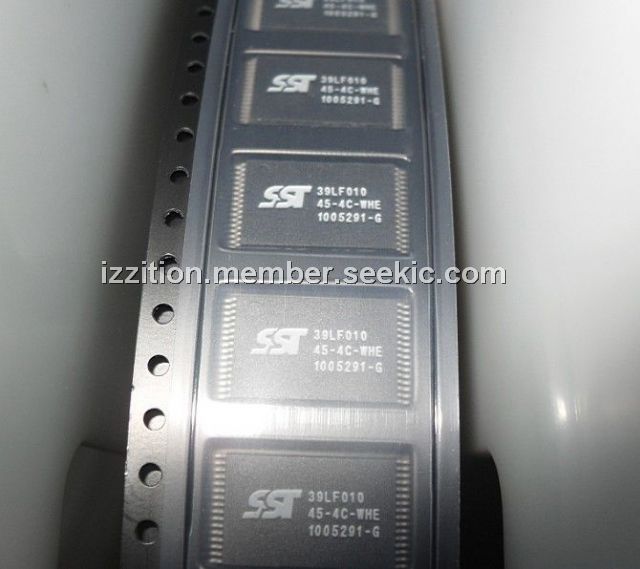

The SST39LF010-45-4C-WHE is a Multi-Purpose Flash (MPF) manufactured with SST’s proprietary, high performance CMOS SuperFlash technology. It writes (Program or Erase) with a 3.0-3.6V power supply. The SST39LF010-45-4C-WHE uses Toggle Bit or Data# Polling to indicate the completion of Program operation. To protect against inadvertent write, it has on-chip hardware and Software Data Protection schemes. The SST39LF010-45-4C-WHE is suited for applications that require convenient and economical updating of program, configuration, or data memory.
Parametrics
SST39LF010-45-4C-WHE absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential:-0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential:-2.0V to VDD+2.0V; (5)Voltage on A9 Pin to Ground Potential:-0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃):1.0W; (7)Surface Mount Solder Reflow Temperature:260℃ for 10 seconds; (8)Output Short Circuit Current:50 mA.
Features
SST39LF010-45-4C-WHE features: (1)Organized as 64K x8 / 128K x8 / 256K x8 / 512K x8; (2)Single Voltage Read and Write Operations:3.0V to 3.6V; (3)Superior Reliability: Endurance: 100,000 Cycles (typical), Greater than 100 years Data Retention; (4)Low Power Consumption(typical values at 14 MHz): Active Current: 5 mA (typical), Standby Current: 1 μA (typical); (5)Sector-Erase Capability:Uniform 4 KByte sectors; (6)Fast Read Access Time:45ns; (7)Latched Address and Data; (8)Automatic Write Timing:Internal VPP Generation; (9)End-of-Write Detection: Toggle Bit, Data# Polling; (10)CMOS I/O Compatibility ; (11)JEDEC Standard:Flash EEPROM Pinouts and command sets.

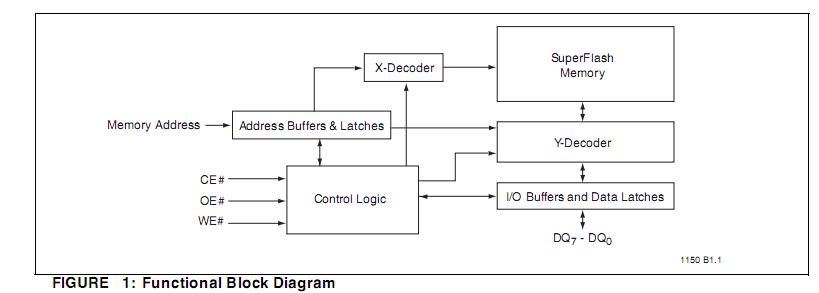

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39LF010-45-4C-WHE |
Microchip Technology |
Flash 128K X 8 45ns |
Data Sheet |
|
|
||||||||||||
|
SST39LF010-45-4C-WHE-T |
Microchip Technology |
Flash 3.0 to 3.6V 1Mbit Multi-Purpose Flash |
Data Sheet |
|
|
||||||||||||
