Product Summary

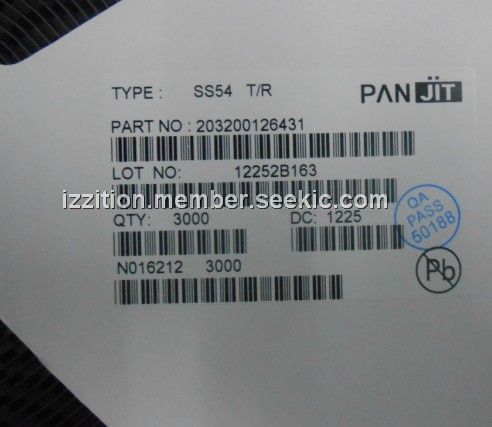

The SS54 is a Surface Mount Schottky Rectifier.

Parametrics

SS54 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 40V; (2)Maximum RMS voltage VRMS: 28V; (3)Maximum DC blocking voltage VDC: 40V; (4)Max. average forward rectified current at TL IF(AV): 5.0A; (5)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM: 150A; (6)Typical thermal resistance (2) RθJA: 55℃/W; (7)Operating junction temperature range TJ: -55 to +125℃; (8)Storage temperature range TSTG: -55 to +150℃.

Features

SS54 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Low profile surface mount package; (3)Built-in strain relief; (4)Low power loss, high efficiency; (5)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications.

Diagrams

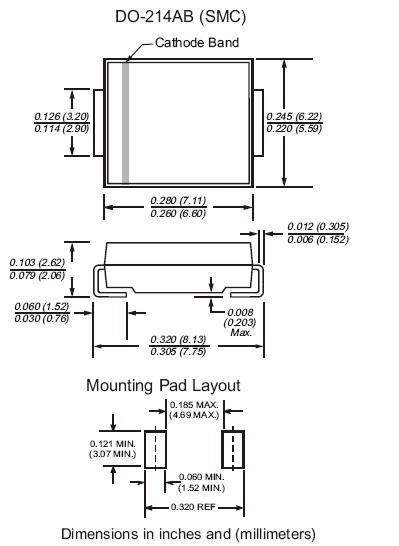

SS54 dimension
