Product Summary

The SN74HC594DWR 8-bit shift register contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Separate clocks and direct overriding clear (RCLR, SRCLR) inputs of SN74HC594DWR are provided on both the shift and storage registers. A serial (QH4) output is provided for cascading purposes. Both the shift register (RCLK) and storage register (SRCLK) clocks are positive edge triggered. If both clocks are connected together, the shift register is always one count pulse ahead of the storage register.

Parametrics

SN74HC594DWR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, qJA: D package: 113℃/W, DB package: 131℃/W, N package: 78℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN74HC594DWR features: (1)8-Bit Serial-In, Parallel-Out Shift Registers With Storage; (2)Independent Direct Overriding Clears on Shift and Storage Registers; (3)Independent Clocks for Both Shift and Storage Registers; (4)High-Current Outputs Can Drive Up to 15 LSTTL Loads; (5)Package Options Include Plastic Small-Outline (D), Shrink Small-Outline (DB), and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

Diagrams

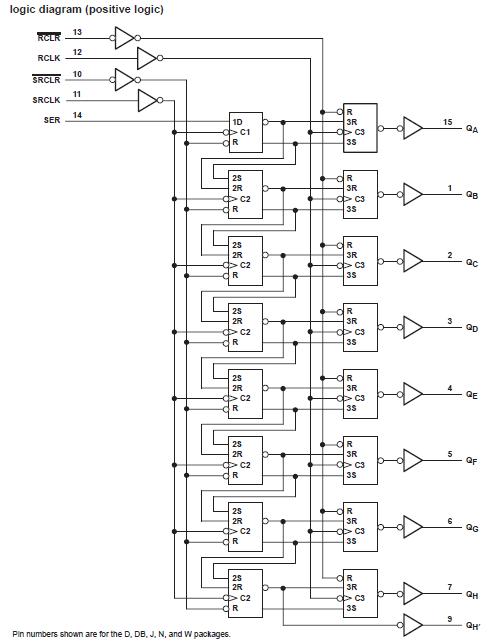

SN74HC594DWR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74HC594DWR
SN74HC594DWR

Texas Instruments

Counter Shift Registers 8-Bit Shift Register w/Output Registers

Data Sheet

0-1: $0.38
1-25: $0.29
25-100: $0.26
100-250: $0.23
SN74HC594DWRE4
SN74HC594DWRE4

Texas Instruments

Counter Shift Registers 8-Bit Shift Register w/Output Registers

Data Sheet

0-1: $0.34
1-25: $0.27
25-100: $0.24
100-250: $0.21
SN74HC594DWRG4
SN74HC594DWRG4

Texas Instruments

Counter Shift Registers 8B Shift Register

Data Sheet

0-1: $0.34
1-25: $0.27
25-100: $0.24
100-250: $0.21
