Product Summary
The S3C2510A01-GB80 is the 16/32-bit RISC micro-controller which is a cost-effective, high-performance micro-controller solution for Ethernet-based systems, for example, SOHO router, internet gateway, WLAN AP, etc. The S3C2510A01-GB80 is developed using an ARM940T core, 0.18um CMOS standard cells and a memory compiler. Its powerful, elegant and fully static design is suitable for various network applications.
Parametrics
S3C2510A01-GB80 absolute maximum ratings: (1)CPU Operating Frequency: Up to 166MHz; (2)AHB Bus Operating Frequency: Up to 133MHz; (3)Package Type: 416 PBGA; (4)Core Operating at 1.8V ±5 %, -40~85 ℃; (5)I/O Operating at 3.3V ±5%, -40~85 ℃; (6)3.3V input/output levels, 5V tolerant only for PCI.
Features
S3C2510A01-GB80 features: (1)16/32-bit ARM940T RISC Embedded; (2)4K-byte I-Cache and 4K-byte D-Cache; (3)Memory Controller with 24-bit External Address Pins; (4)Two 10/100 Mbps Ethernet Controllers; (5)PCI Host/Agent Controller or CardBus (PCMCIA) Host/Agent Controller; (6)AAL5 SAR and UTOPIA L1/L2; (7)2 Port Full/Low Speed USB HOST with Root Hub.; (8)1 Port Full Speed USB Function with Transceiver Spec. 1.1; (9)Six General-Purpose DMAs; (10)Two High-Speed UARTs; (11)One Console UART; (12)DES and 3DES for IP Security; (13)IIC Serial Interface; (14)Interrupt Controller; (15)Six 32-bit Programmable Timers; (16)30-bit Watchdog Timer; (17)64 Programmable I/O Ports.

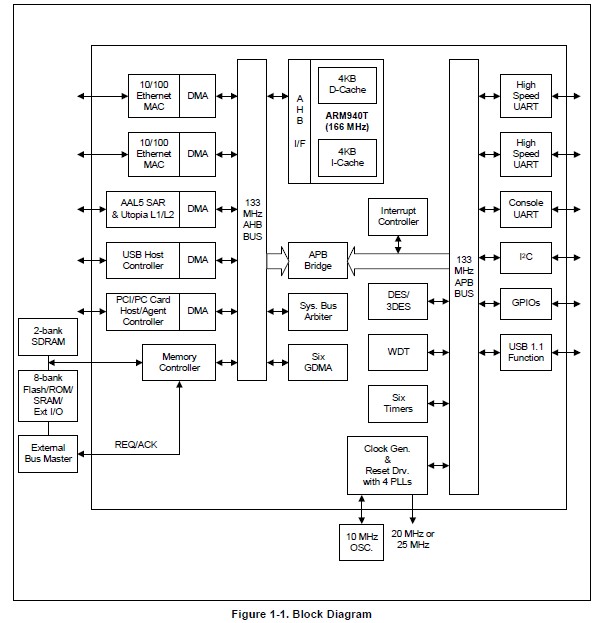

Diagrams
 |
