Product Summary

The LX1973AIDU-TR is a wide dynamic range light sensor with a very low dark current that is optimized for sensing low level light signals that typically occur under dark or darkening outdoor ambient lighting. The LX1973AIDU-TR has been optimized for automotive systems such as headlamp brightness control or rear view mirror contrast control. Its radical (fractional exponent) response when interfaced with an 8 bit DAC can detect levels down to 0.001 lux or levels as high as 500 lux.

Parametrics

LX1973AIDU-TR absolute maximum ratings: (1)VDD: -0.3 to 6 VDC; (2)SNK/SRC (Output Compliance Voltage): -0.3 to VDD + 0.3VDC; (3)SNK/SRC (Maximum Output Current): Internally Limited; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range.: -40℃ to +100℃; (6)RoHS / Pb-free Peak Package Solder Reflow Temperature (40 seconds maximum exposure) : 260℃.

Features

LX1973AIDU-TR features: (1)Nearly Perfect Best Eye Human Eye Spectral Response; (2)25℃ Dark Current <0.005 lux; (3)5 Decades Compressed Output; (4)10% Accuracy Over Temperature; (5)Scalable Output Voltage; (6)No Optical Filters Needed.

Diagrams

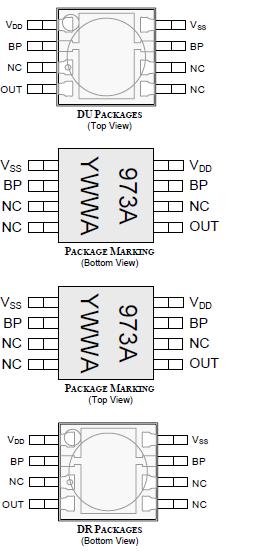

LX1973AIDU-TR pin configurations
