Product Summary

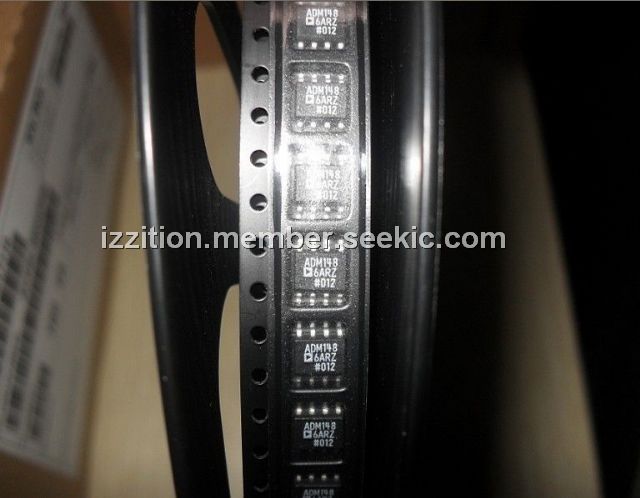

The ADM1486ARZ is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission, complies with EIA Standards RS-485 and RS-422 and is recommended for PROFIBUS applications. The part of the ADM1486ARZ contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled or with power off, the driver outputs are tristated.
Parametrics
ADM1486ARZ absolute maximum ratings: (1)VCC: +7 V; (2)Inputs Driver Input (DI): –0.3 V to VCC + 0.3 V; (3)Control Inputs (DE, RE): –0.3 V to VCC + 0.3 V; (4)Receiver Inputs (A, B): –9 V to +14 V; (5)Outputs Driver Outputs: –9 V to +14 V; (6)Receiver Output: –0.5 V to VCC + 0.5 V; (7)Power Dissipation 8-Lead DIP: 500 mW; (8)θJA, Thermal Impedance: +130℃/W; (9)Power Dissipation 8-Lead SOIC: 450 mW; (10)θJA, Thermal Impedance: +170℃/W; (11)Power Dissipation 8-Lead Cerdip: 500 mW; (12)θJA, Thermal Impedance: +125℃/W.
Features
ADM1486ARZ features: (1)Meets & Exceeds EIA RS-485 & EIA RS-422 Standard 50 Mb/s Data Rate; (2)Recommended for PROFIBUS Applications; (3)2.1V Minimum Differential Output with 54 Termination; (4)Low Power 0.5mA ICC; (5)High Z Outputs with Drivers Disabled or Power Off; (6)Superior Upgrade for SN65ALS1176; (7)15kV HBM ESD Protection on I/O Pins A & B; (8)Available in Standard 8-pin SOIC & Miniature 8-pin; (9)Micro SOIC packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM1486ARZ |
|
IC TX/RX RS-485 PRO-BUS 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM1486ARZ-REEL |
|
IC TXRX RS-485 PRO-BUS 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM1486ARZ-REEL7 |
|
IC TXRX RS-485 PRO-BUS 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
